CHS5104-QAG

Reflective SPDT

CHS5104-QAG Features

* Broadband performance: DC-4GHz

* Low insertion loss: 0.7dB

* Isolation: 40dB

* Return loss: 16dB

* Input P1dB: 30dBm

* QAG-QFN3x3

* MSL1 Main Electrical Characteristics Tamb.= +25°C Symbol Parameter Freq Frequency range IL On state insertion loss ISOL Off state

CHS5104-QAG General Description

The CHS5104-QAG is a monolithic FET based reflective switch. It is designed for a wide range of applications, from military to commercial systems. The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It.

CHS5104-QAG Datasheet (800.21 KB)

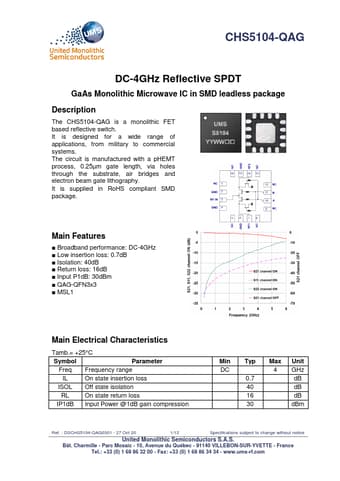

Preview of CHS5104-QAG PDF

Datasheet Details

Part number:

CHS5104-QAG

Manufacturer:

United Monolithic Semiconductors

File Size:

800.21 KB

Description:

Reflective spdt.
