CHS5104-FAB

Reflective SPDT

CHS5104-FAB Features

* Broadband performance: DC-6GHz

* Low insertion loss: 0.6dB @2GHz 1.0dB @4GHz 1.3dB @6GHz

* Isolation: 30dB @4GHz

* Input P1dB: 30dBm Main Electrical Characteristics Tamb.= +25°C Vh=0V/VL=-5V Symbol Parameter Freq Frequency range IL On state insertion loss ISOL Off state iso

CHS5104-FAB General Description

The CHS5104-FAB is a monolithic FET based reflective switch housed in leadless surface mount hermetic metal ceramic 6x6mm² package. It is designed for a wide range of applications, from space and military to commercial communication systems. The circuit is manufactured with a pHEMT process, 0.25µm g.

CHS5104-FAB Datasheet (929.05 KB)

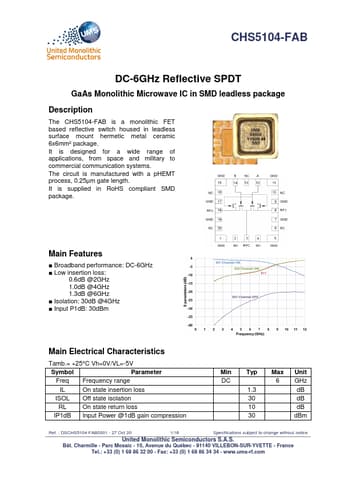

Preview of CHS5104-FAB PDF

Datasheet Details

Part number:

CHS5104-FAB

Manufacturer:

United Monolithic Semiconductors

File Size:

929.05 KB

Description:

Reflective spdt.
