UF3N090350Z Datasheet - UnitedSiC

UF3N090350Z 900V SiC Normally-on JFET

UnitedSiC offers the high-performance G3 SiC normally-on JFET transistors. This series exhibits ultra-low on resistance (RDS(ON)) and gate charge (QG) allowing for low conduction and switching loss. The device normally-on characteristics with low RDS(ON) at VGS = 0 V is also ideal for current protec.

UF3N090350Z Features

* w Typical on-resistance RDS(on),typ of 330mW w Voltage controlled w Maximum operating temperature of 175°C w Extremely fast switching not dependent on temperature w Low gate charge w Low intrinsic capacitance w RoHS compliant Typical applications w Over Current Protection Circuits w DC-AC Inverters

UF3N090350Z Datasheet (292.11 KB)

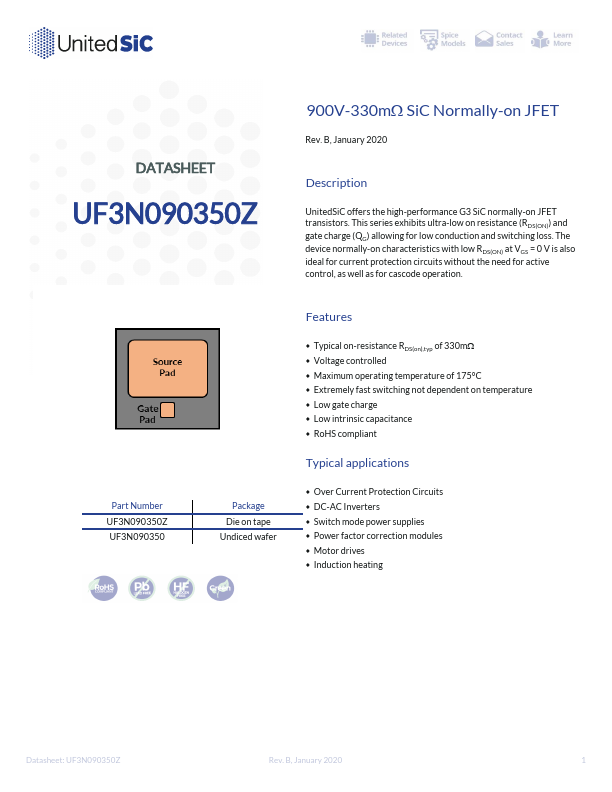

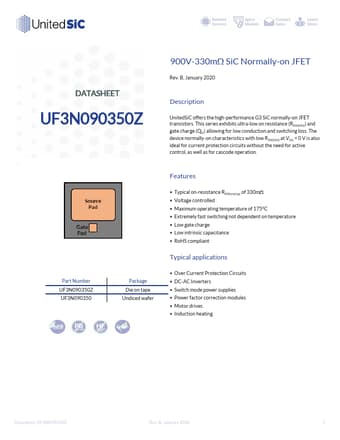

Preview of UF3N090350Z PDF

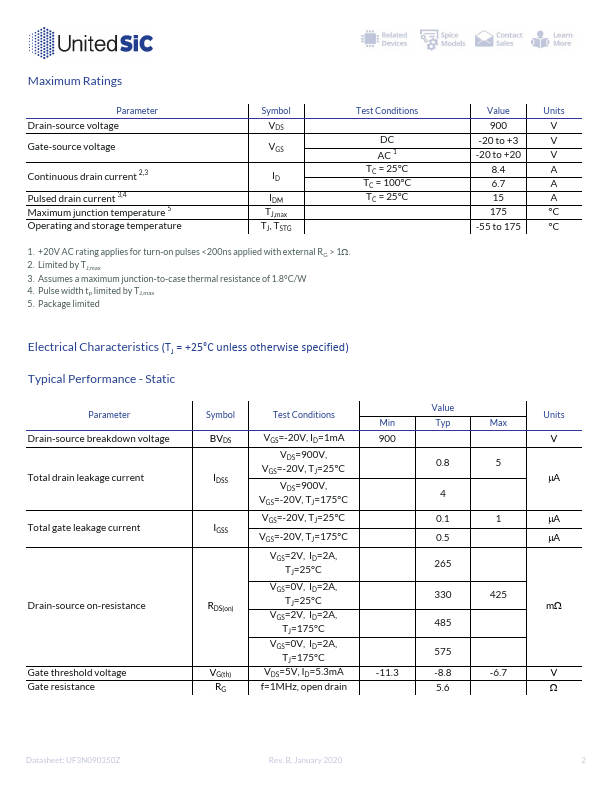

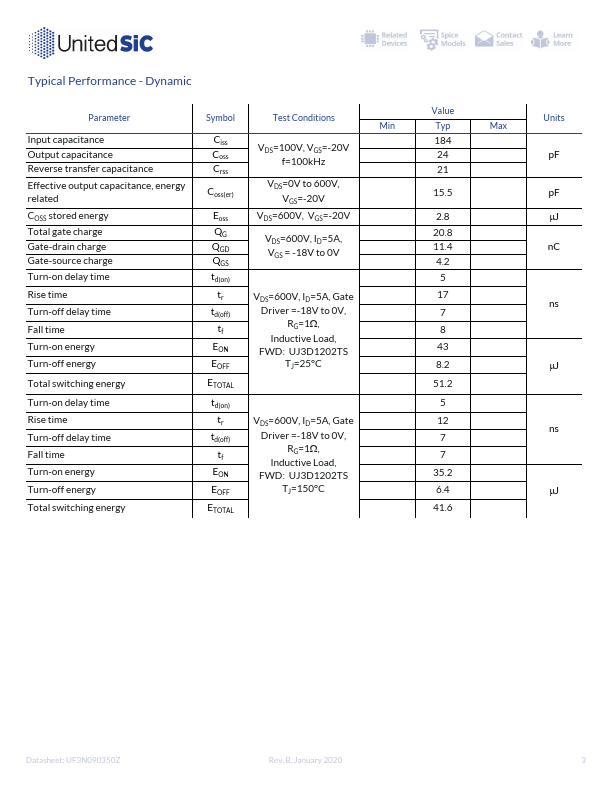

UF3N090350Z Datasheet Preview Page 2 UF3N090350Z Datasheet Preview Page 3

Datasheet Details

Part number:

UF3N090350Z

Manufacturer:

UnitedSiC

File Size:

292.11 KB

Description:

900v sic normally-on jfet.
