UF3N170400Z JFET

UF3N170400Z Description

X0AH X0A4H X0A1H X0A2H X0A3H DATASHEET UF3N170400Z 1700V-400mΩ SiC Normally-on JFET Preliminary, March 2019 .
United Silicon Carbide, Inc offers the high-performance G3 SiC normally-on JFET transistors.

UF3N170400Z Features

* Typical on-resistance RDS(on),typ of 400mΩ
* Voltage controlled
* Maximum operating temperature of 175°C
* Extremely fast switching not dependent on temperature
* Low gate charge
* Low intrinsic capacitance

UF3N170400Z Applications

* Over Current Protection Circuits
* DC-AC Inverters
* Switch mode power supplies
* Power factor correction modules
* Motor drives
* Induction heating Datasheet: UF3N170400Z Preliminary, March 2019 1 X0AH X0A4H X0A1H X0A2H X0A3H Maximum Ratings Parameter Drain-source vo

📥 Download Datasheet

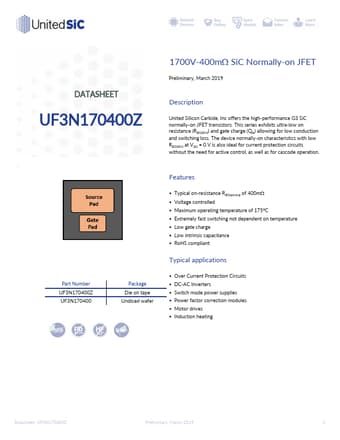

Preview of UF3N170400Z PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UF3N170400Z
Manufacturer
UnitedSiC
File Size
217.04 KB
Datasheet
UF3N170400Z-UnitedSiC.pdf
Description
JFET
