UF3N090800Z - JFET

Datasheet Summary

Description

United Silicon Carbide, Inc offers the high-performance G3 SiC normally-on JFET transistors.

This series exhibits ultra-low on resistance (RDS(ON)) and gate charge (QG) allowing for low conduction and switching loss.

Features

  • w Typical on-resistance RDS(on),typ of 735mW w Voltage controlled w Maximum operating temperature of 175°C w Extremely fast switching not dependent on temperature w Low gate charge w Low intrinsic capacitance w RoHS compliant Typical.

📥 Download Datasheet

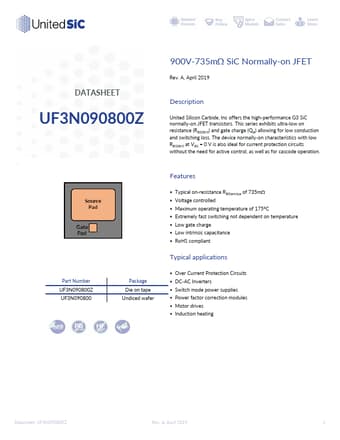

Datasheet preview – UF3N090800Z

Datasheet Details

Part number UF3N090800Z
Manufacturer UnitedSiC
File Size 348.14 KB
Description JFET
Datasheet download datasheet UF3N090800Z Datasheet
Additional preview pages of the UF3N090800Z datasheet.

📁 Similar Datasheet

  • UF3N120007K4S - SiC JFET (onsemi)
  • UF3N170400B7S - SiC JFET (onsemi)
  • UF3N25Z - 3A 250V N-CHANNEL POWER MOSFET (UNISONIC TECHNOLOGIES)
  • UF3N30 - 300V N-CHANNEL POWER MOSFET (Unisonic Technologies)
  • UF300 - 3.0 AMP HIGH EFFICIENCY RECTIFIERS (Bytes)
  • UF300 - ULTRAFAST SWITCHING RECTIFIER (Pan Jit International)
  • UF300 - ULTRAFAST SWITCHING RECTIFIER (TRSYS)
  • UF3001 - 3 AMP ULTRA FAST SWITCHING RECTIFIER (Fuji Electric)
  • UF3001 - 3.0A ULTRA-FAST RECTIFIER (Diodes Incorporated)
  • UF3001 - HIGH EFFICIENCY RECTIFIERS (HY ELECTRONIC)
Other Datasheets by UnitedSiC

Full PDF Text Transcription

Click to expand full text
DATASHEET UF3N090800Z 900V-735mW SiC Normally-on JFET Rev. A, April 2019 Description United Silicon Carbide, Inc offers the high-performance G3 SiC normally-on JFET transistors. This series exhibits ultra-low on resistance (RDS(ON)) and gate charge (QG) allowing for low conduction and switching loss. The device normally-on characteristics with low RDS(ON) at VGS = 0 V is also ideal for current protection circuits without the need for active control, as well as for cascode operation.
