UF3N120007K4S

SiC JFET

onsemi

UF3N120007K4S Features

* Single Digit On-Resistance

* Operating Temperature: 175 C (Max)

* High Pulse Current Capability

* Excellent Device Robustness

* Silver-Sintered Die Attach for Excellent Thermal Resistance

* This Device is Pb-Free, Halogen Free and is RoHS Compliant Typical Applications

UF3N120007K4S General Description

onsemi’s UF3N120007K4S is a 1200 V, 7.1 mW High-Performance Gen 3 Normally-On SiC JFET Transistor. This device exhibits Ultra-low On resistance (RDS(ON)) in a TO247-4 Package, making it an ideal fit to address the Challenging Thermal Constraints of Solid-state Circuit Breakers and Relay Applications.

UF3N120007K4S Datasheet (346.97 KB)

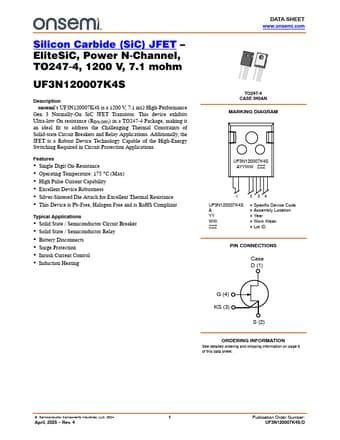

UF3N120007K4S Datasheet Preview — Preview of UF3N120007K4S PDF

Datasheet Details

Part number:

UF3N120007K4S

Manufacturer:

onsemi

File Size:

346.97 KB

Description:

Sic jfet.
