* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* Load Switch
* PA Switch
* DC/DC Converters ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless o
AO3415A
VBsemi
275.13 KB
P-channel mosfet.

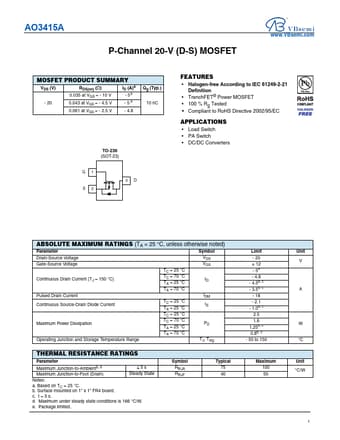

AO3415A
P-Channel 20-V (D-S) MOSFET
www.VBsemi.com
MOSFET PRODUCT SUMMARY
VDS (V) - 20
RDS(on) () 0.035 at VGS = - 10 V 0.043 at VGS = - 4.5 V
.
