AO4414 - N-Channel 20V MOSFET

AO4414 Description

AO4414 N-Channel 20V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 20 0.012 at VGS = 10 V 0.015 at VGS = 4.5 V ID (A)a 12 11.

AO4414 Features

* Halogen-free
* TrenchFET® Power MOSFET
* Optimized for High-Side Synchronous Rectifier Operation
* 100 % Rg Tested

AO4414 Applications

* Notebook CPU Core - High-Side Switch D G Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 20 VGS ± 16 V TC = 25 °C 12 Continuous Drain Current (TJ = 150 °C) TC =

📥 Download Datasheet

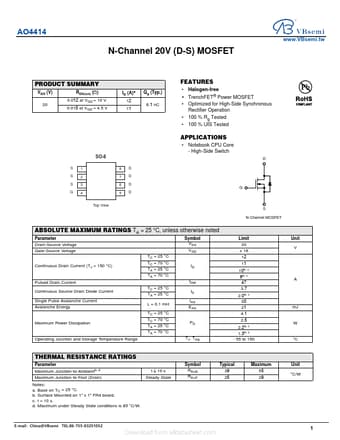

Preview of AO4414 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AO4414
Manufacturer
VBsemi
File Size
876.45 KB
Datasheet
AO4414-VBsemi.pdf
Description
N-Channel 20V MOSFET
