IRFIZ24GP N-Channel 60V MOSFET

VBsemi

Description

IRFIZ24GP N-Channel 60 V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 60 VGS = 1.

📥 Download Datasheet

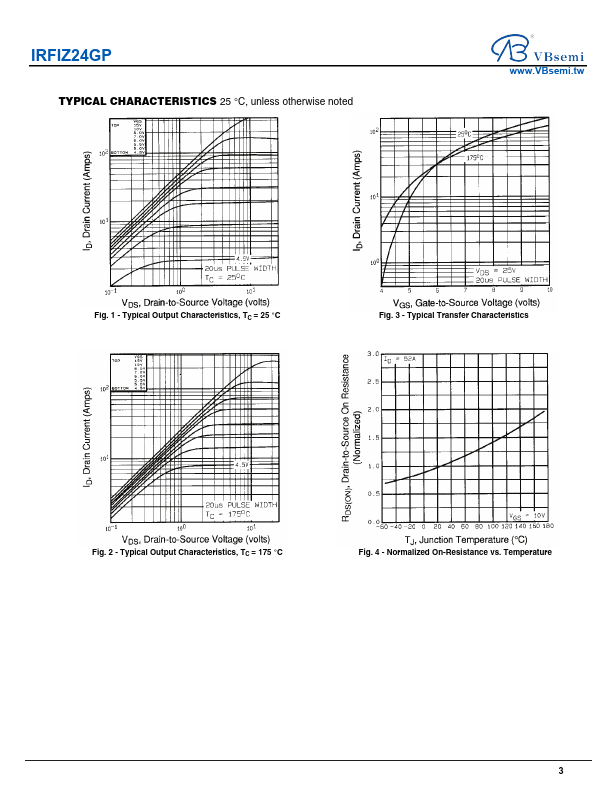

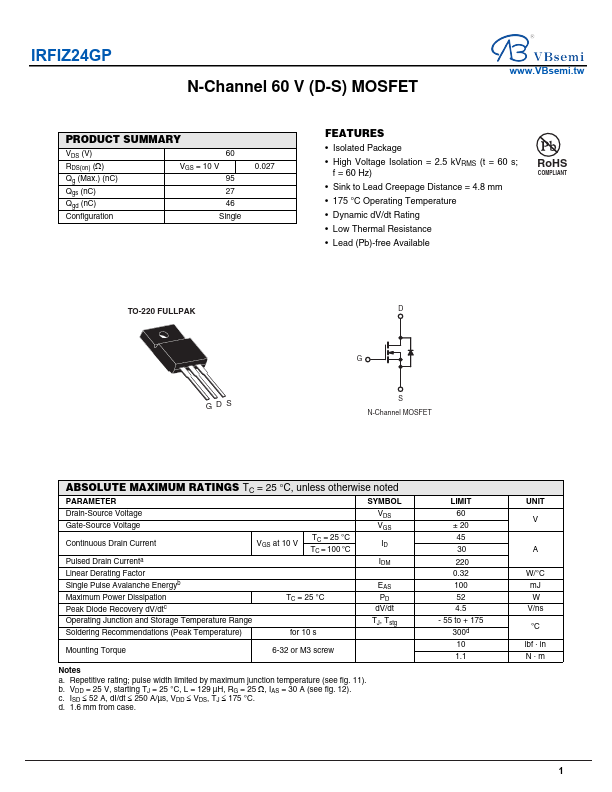

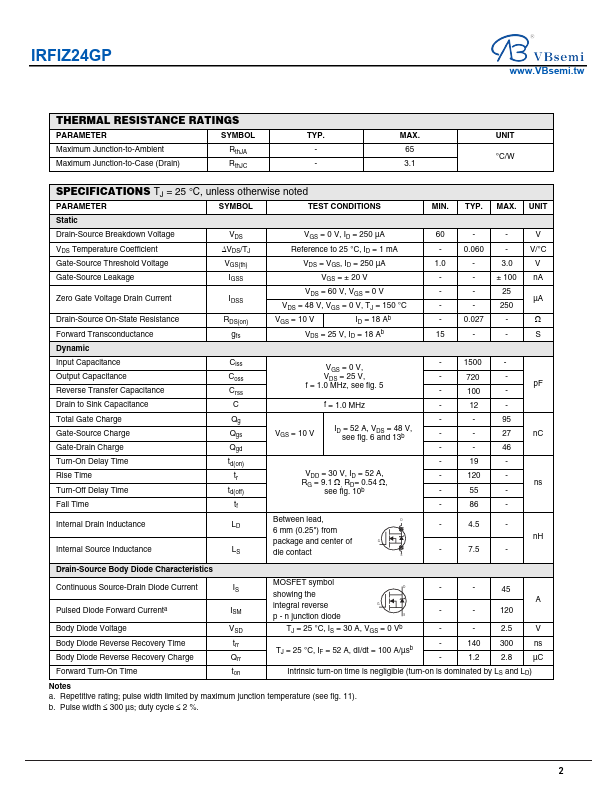

IRFIZ24GP Datasheet Preview — Preview of IRFIZ24GP PDF

Datasheet Specifications

Part number: IRFIZ24GP
Manufacturer: VBsemi
File Size: 1.87 MB
Datasheet: IRFIZ24GP-VBsemi.pdf
Description: N-Channel 60V MOSFET

Features

* Isolated Package
* High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
* Sink to Lead Creepage Distance = 4.8 mm
* 175 °C Operating Temperature
* Dynamic dV/dt Rating
* Low Thermal Resistance
* Lead (Pb)-free Available RoHS COMPLIANT T
