ME2325

P-Channel 30V MOSFET

VBsemi

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Matsuki Presicion Ceramic Co Ltd	ME2325	ME2325-G		Bristol Electronics	6456	0	$0

📥 Download PDF (239.30 KB)

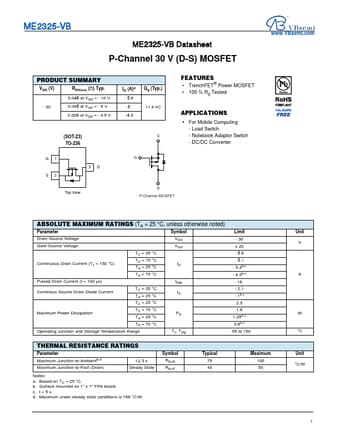

ME2325 Datasheet Preview Page 1 — Preview of ME2325 Datasheet

Datasheet Details

Part number:

ME2325

Manufacturer:

VBsemi

File Size:

239.30 KB

Download:

📄 Download ME2325 Datasheet PDF

Description:

P-channel 30v mosfet.
ME2325-VB ME2325-VB Datasheet P-Channel 30 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Ty.
p. 0.046 at VGS = - 10 V - 30 0.049 at VGS = - 6 V 0.054 at VGS = - 4.5 V ID (A)a - 5.6 -5 -4.5.

✔ ME2325 Features

TrenchFET® Power MOSFET
100 % Rg Tested APPLICATIONS
For Mobile Computing - Load Switch - Notebook Adaptor Switch - DC/DC Converter G1 S2 3D Top View G D P-Chan

✔ ME2325 Application

For Mobile Computing - Load Switch - Notebook Adaptor Switch - DC/DC Converter G1 S2 3D Top View G D P
