ME2320D-G Datasheet, Mosfet, Matsuki

ME2320D-G Features

  • Mosfet RDS(ON)=21m @VGS=4.5V RDS(ON)=25 m @VGS=2.5V RDS(ON)=33 m @VGS=1.8V Super high density cell design for extremely low RDS(ON) Exceptional on-resistance and maximum DC current capability

PDF File Details

Part number:

ME2320D-G

Manufacturer:

Matsuki

File Size:

896.89kb

Download:

📄 Datasheet

Description:

N-channel 20v (d-s) mosfet. The ME2320D is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench

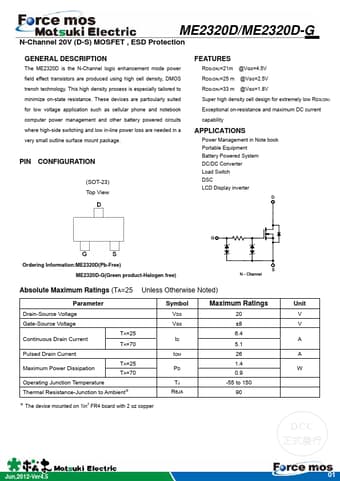

Datasheet Preview: ME2320D-G 📥 Download PDF (896.89kb)
Page 2 of ME2320D-G Page 3 of ME2320D-G

ME2320D-G Application

  • Applications Power Management in Note book Portable Equipment Battery Powered System DC/DC Converter Load Switch DSC LCD Display inverter Ordering
