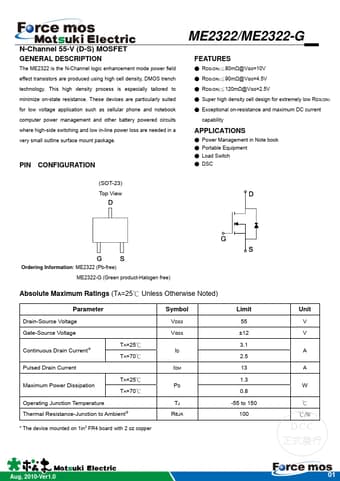

ME2322-G Datasheet, Mosfet, Matsuki

ME2322-G Features

• Mosfet
• RDS(ON)≦80mΩ@VGS=10V
• RDS(ON)≦90mΩ@VGS=4.5V
• RDS(ON)≦120mΩ@VGS=2.5V
• Super high density cell design for extremely low RDS(ON)
• Exceptional

PDF File Details

Part number:

ME2322-G

Manufacturer:

Matsuki

File Size:

1.04MB

Download:

📄 Datasheet

Description:

N-channel 55v (d-s) mosfet. The ME2322 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench t

ME2322-G Application

• Applications
• Power Management in Note book
• Portable Equipment
• Load Switch
• DSC (SOT-23) Top View e Ordering
