SI4830CDY Dual N-Channel 30V MOSFET

VBsemi

Description

SI4830CDY-VB SI4830CDY-VB Datasheet www.VBsemi.com Dual N-Channel 30-V (D-S) MOSFET with Schottky Diode PRODUCT SUMMARY Channel-1 Channel-2 VDS .

📥 Download Datasheet

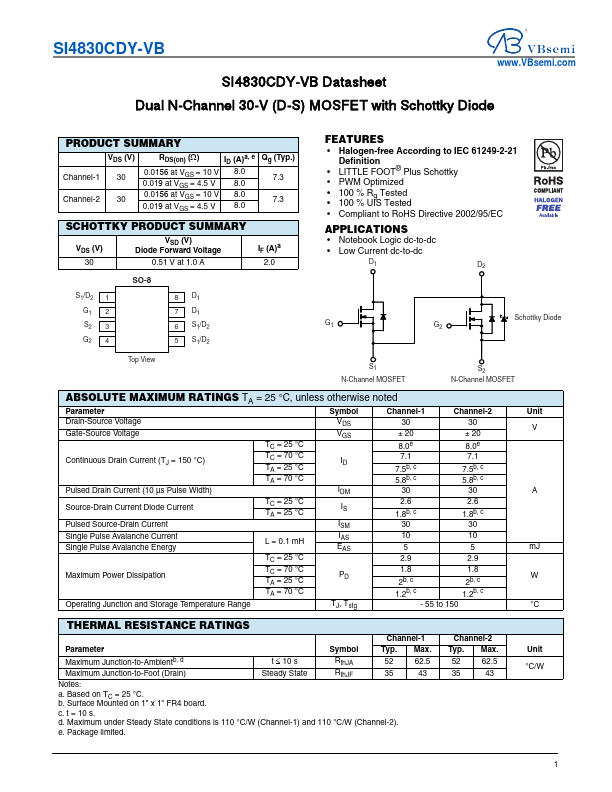

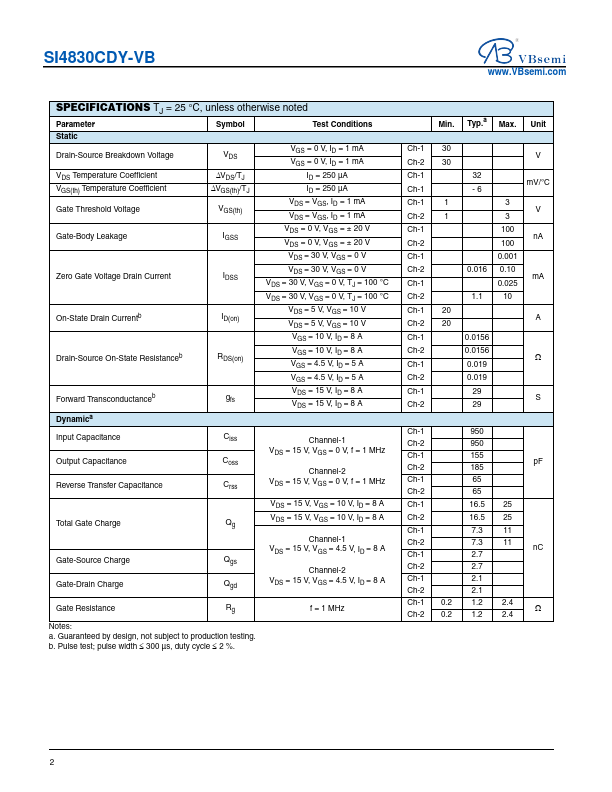

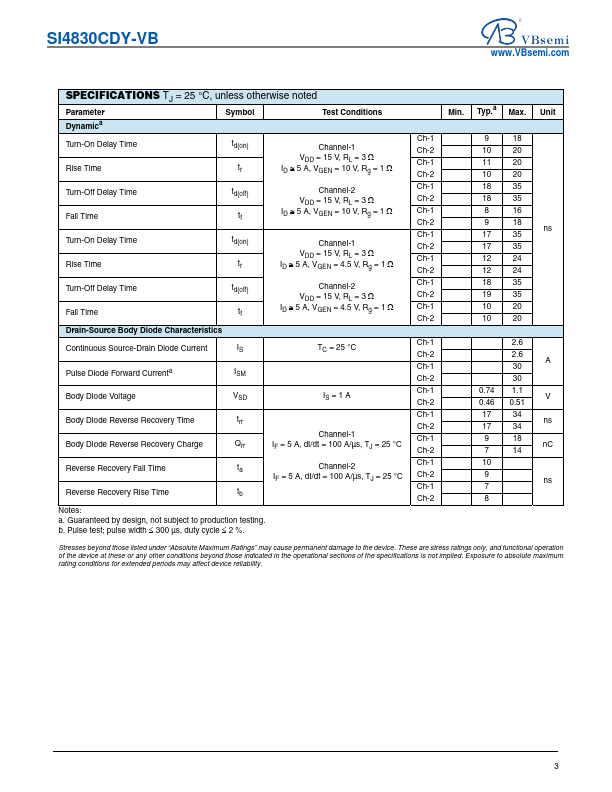

SI4830CDY Datasheet Preview — Preview of SI4830CDY PDF

Datasheet Specifications

Part number: SI4830CDY
Manufacturer: VBsemi
File Size: 797.27 KB
Datasheet: SI4830CDY-VBsemi.pdf
Description: Dual N-Channel 30V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* LITTLE FOOT® Plus Schottky
* PWM Optimized
* 100 % Rg Tested
* 100 % UIS Tested

Applications

* Notebook Logic dc-to-dc
* Low Current dc-to-dc D1 D2 Schottky Diode G1 G2 Top View S1 N-Channel MOSFET S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Channel-1 Channel-2 Unit Drain-Source Voltage Gate-Source Voltage
