SI4840BDY N-Channel 40-V MOSFET

VBsemi

Description

SI4840BDY-VB SI4840BDY-VB Datasheet N-Channel 40-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 40 0.014 at VGS = 10 V 0.01.

📥 Download Datasheet

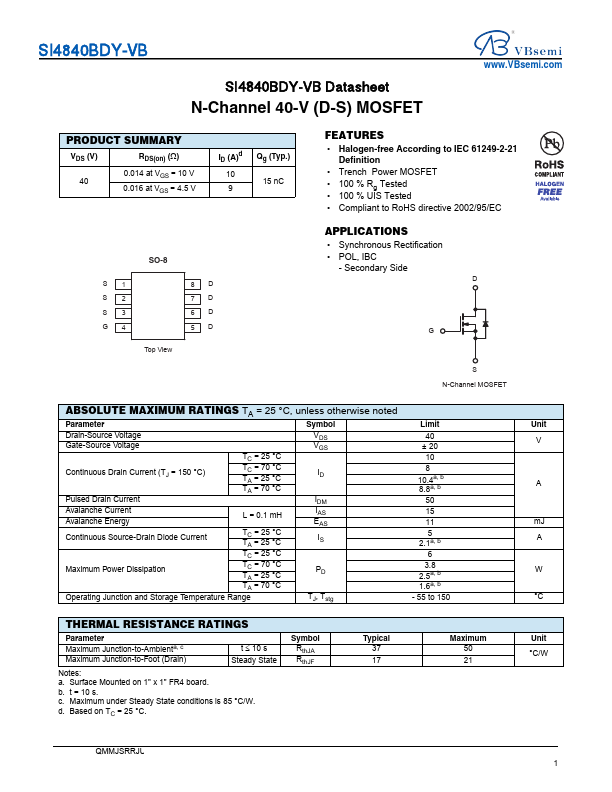

SI4840BDY Datasheet Preview — Preview of SI4840BDY PDF

Datasheet Specifications

Part number: SI4840BDY
Manufacturer: VBsemi
File Size: 313.13 KB
Datasheet: SI4840BDY-VBsemi.pdf
Description: N-Channel 40-V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested

Applications

* Synchronous Rectification
* POL, IBC - Secondary Side D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 40 VGS ± 20 V TC = 25 °C 10 Continuous Drain Current (TJ =
