SI4204DY Dual N-Channel 20V MOSFET

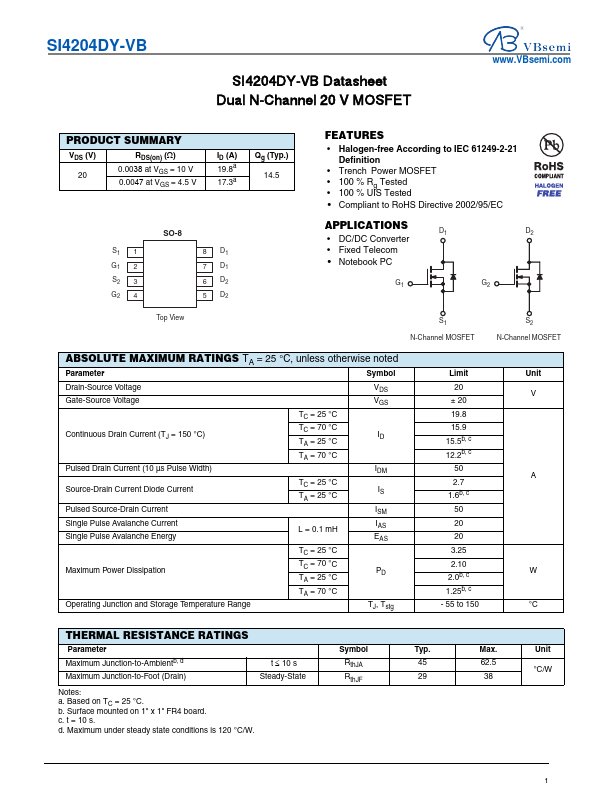

📥 Download Datasheet  Datasheet Preview Page 1

Description

SI4204DY-VB SI4204DY-VB Datasheet Dual N-Channel 20 V MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 20 RDS(on) (Ω) 0.0038 at VGS = 10 V 0.0047 at.

📥 Download Datasheet

Preview of SI4204DY PDF

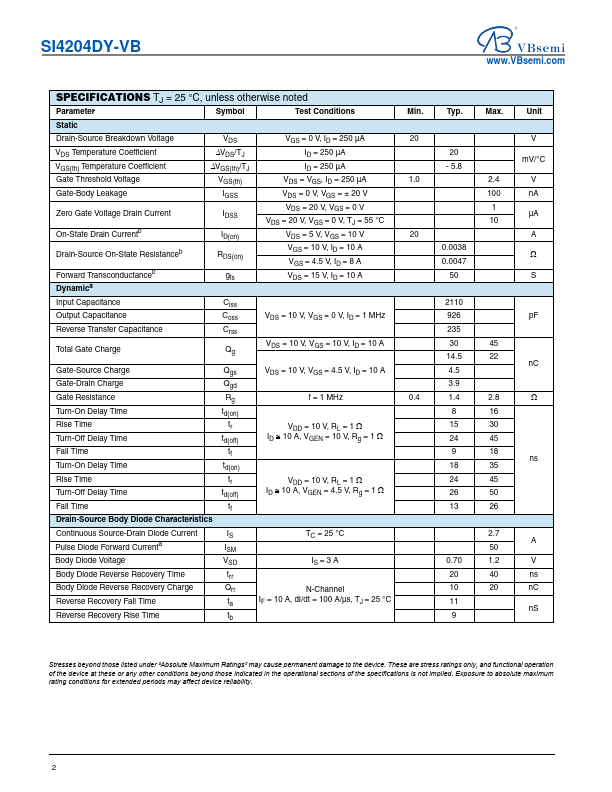

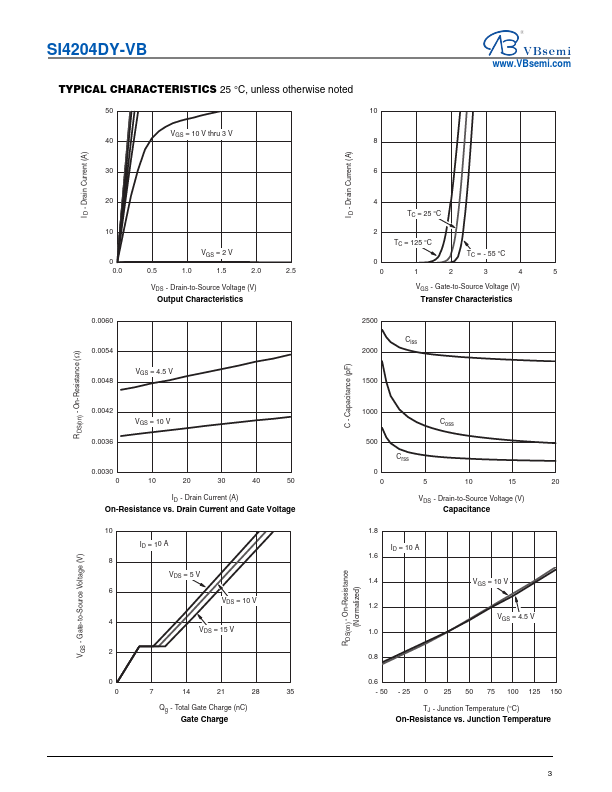

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SI4204DY
Manufacturer
VBsemi
File Size
336.46 KB
Datasheet
SI4204DY-VBsemi.pdf
Description
Dual N-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested

Applications

* D1 D2
* DC/DC Converter
* Fixed Telecom
* Notebook PC G1 G2 Top View S1 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Curr
