VBTA7322 - N-Channel MOSFET

VBTA7322 Description

VBTA7322 N-Channel 30 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () 0.023 at VGS = 10 V 30 0.027 at VGS = 4.5 V ID (A)a, e .

VBTA7322 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* Low On-Resistance
* 100 % Rg Tested

VBTA7322 Applications

* DC/DC Converters, High Speed Switching ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current (t = 300 µs) VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C I

📥 Download Datasheet

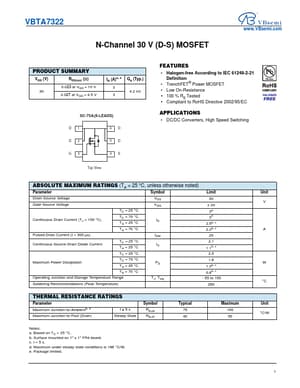

Preview of VBTA7322 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBTA7322
Manufacturer
VBsemi
File Size
262.62 KB
Datasheet
VBTA7322-VBsemi.pdf
Description
N-Channel MOSFET
