VG2617400D - CMOS DRAM

Description

The device is CMOS Dynamic RAM organized as 4,194,304 words x 4 bits.

It is fabricated with an advanced submicron CMOS technology and designed to operate from a single 5V only or 3.3V only power supply.

Features

  • Single 5V ( ± 10 %) or 3.3V ( ± 10 %) only power supply.
  • High speed tRAC access time : 50/60 ns.
  • Low power dissipation - Active mode : 5V version 605/550 mW (Max. ) 3.3V version 396/360 mW (Max. ) - Standby mode : 5V version 1.375 mW (Max. ) 3.3V version 0.54 mW (Max. ).
  • Fast Page Mode access.
  • I/O level : TTL compatible (Vcc = 5V) LVTTL compatible (Vcc = 3.3V).
  • 2048 refresh cycles in 32 ms (Std) or 128ms (S - version).
  • 4 refresh mode :.

📥 Download Datasheet

Datasheet preview – VG2617400D

Datasheet Details

Part number VG2617400D
Manufacturer Vanguard International Semiconductor
File Size 496.98 KB
Description CMOS DRAM
Datasheet download datasheet VG2617400D Datasheet

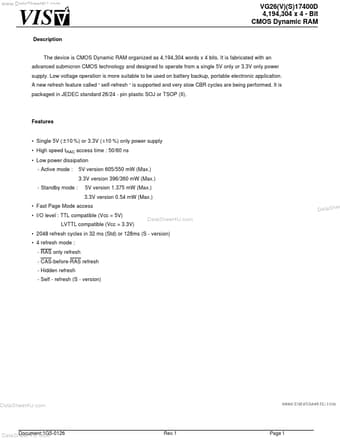

Additional preview pages of the VG2617400D datasheet.

📁 Similar Datasheet

  • VG2617405 - CMOS DRAM (Vanguard Microelectronics Limited)
  • VG2617405F - CMOS DRAM (Vanguard Microelectronics Limited)
  • VG2618160CJ - CMOS DRAM (Vanguard Microelectronics Limited)
  • VG2618165C - CMOS DRAM (Vanguard Microelectronics Limited)
  • VG2618165D - CMOS DRAM (Vanguard Microelectronics Limited)
  • VG26S17405 - CMOS DRAM (Vanguard Microelectronics Limited)
  • VG26S17405F - CMOS DRAM (Vanguard Microelectronics Limited)
  • VG26S18160CJ - CMOS DRAM (Vanguard Microelectronics Limited)
  • VG26S18165D - CMOS DRAM (Vanguard Microelectronics Limited)
  • VG26V17405 - CMOS DRAM (Vanguard Microelectronics Limited)
Other Datasheets by Vanguard International Semiconductor

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com VIS Description VG26(V)(S)17400D 4,194,304 x 4 - Bit CMOS Dynamic RAM The device is CMOS Dynamic RAM organized as 4,194,304 words x 4 bits. It is fabricated with an advanced submicron CMOS technology and designed to operate from a single 5V only or 3.3V only power supply. Low voltage operation is more suitable to be used on battery backup, portable electronic application. A new refresh feature called “ self-refresh “ is supported and very slow CBR cycles are being performed. It is packaged in JEDEC standard 26/24 - pin plastic SOJ or TSOP (II). Features • Single 5V ( ± 10 %) or 3.3V ( ± 10 %) only power supply • High speed tRAC access time : 50/60 ns • Low power dissipation - Active mode : 5V version 605/550 mW (Max.) 3.3V version 396/360 mW (Max.
