Part number:
VS3640AC
Manufacturer:
Vanguard Semiconductor
File Size:
539.87 KB
Description:
N-channel advanced power mosfet.

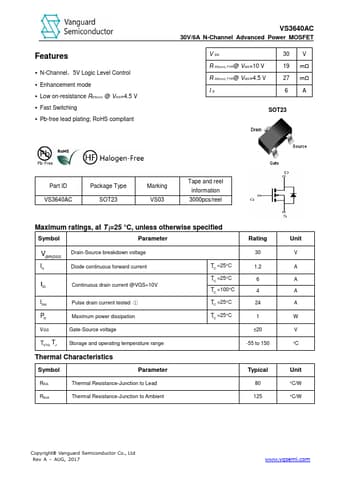

VS3640AC Datasheet (539.87 KB)
* N-Channel，5V Logic Level Control
* Enhancement mode
* Low on-resistance RDS(on) @ VGS=4.5 V
* Fast Switching
* Pb-free lead plating; RoHS compliant VS3640AC 30V/6A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 30 V 19 mΩ 27 mΩ 6A SOT
VS3640AC Datasheet (539.87 KB)
VS3640AC
Vanguard Semiconductor
539.87 KB
N-channel advanced power mosfet.
