VK1056Q

LCD Driver

VK1056Q Features

* Operating voltage:2.4-5.2V

* Built-in 256kHz RC oscillator(default)

* Selection of 1/2 or 1/3 bias

* Selection of 1/2 or 1/3 or 1/4 duty

* Built-in 14×4 bit display RAM

* STANDBY mode(by Cmd LCD OFF,SYS DIS)

* 3 wire serial interface

VK1056Q General Description

VK1056Q 14×4 LCD DRIVER VK1056Q is a RAM Mapping 14x4 LCD Driver,It can support LCD screens with a maximum of 56 pattern(14SEGx4COM),it is also supports LCD screens of 2COM or 3COM. Only 3 lines are required to communication interface with the VK1056Q, it is used to configure display parameters an.

VK1056Q Datasheet (3.74 MB)

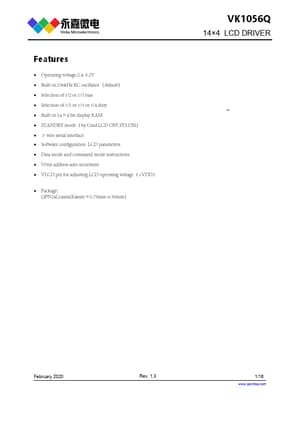

Preview of VK1056Q PDF
