Si8435DB - P-Channel MOSFET

Si8435DB Description

Si8435DB Vishay Siliconix P-Channel 1.5-V (G-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.041 at VGS = - 4.5 V - 20 0.048 at VGS = - 2.5 V 0.058 .

Si8435DB Features

* TrenchFET® Power MOSFET

Si8435DB Applications

* Low Threshold Load Switch for Portable Devices - Low Power Consumption - Increased Battery Life MICRO FOOT Bump Side V iew 3 D D 2 Backside V iew G S 8435 XXX Device Marking: 8435 xxx = Date/Lot Traceability Code D P-Channel MOSFET S 4 G 1 Ordering Information: Si8435DB-T1-E1 (Lead (

📥 Download Datasheet

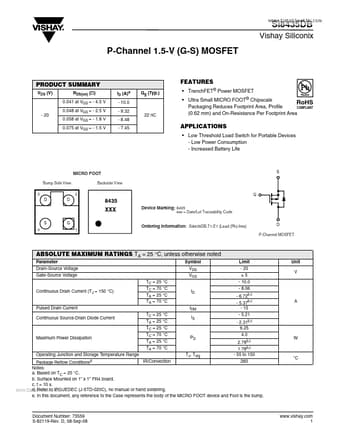

Preview of Si8435DB PDF
datasheet Preview Page 2 datasheet Preview Page 3
