DG2730 Datasheet - Vishay Siliconix

DG2730 DPDT Analog Switch

The DG2730 is 2 port high speed analog switch optimized for USB 2.0 signal switching. The DG2730 switch is configured in DPDT. It handles bidirectional signal flow, achieving a 900 MHz - 3 dB bandwidth, and a port to port crosstalk and isolation at - 49 dB. Processed with high density sub micron CMO.

DG2730 Features

* Halogen-free according to IEC 61249-2-21 definition

* Wide operation voltage range

* Low on-resistance, 7  (typical at 3 V)

* Low capacitance, 6.5 pF (typical)

* 3 dB high bandwidth: 900 MHz (typical)

* Low bit to bit skew: 40 pS (typical)

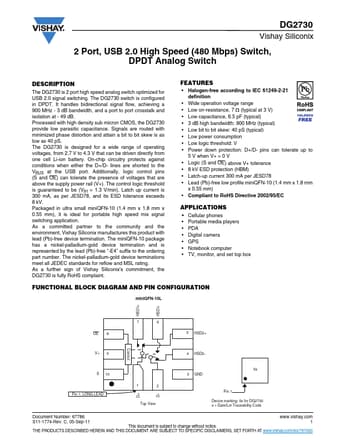

DG2730 Datasheet (242.56 KB)
