DG2736, DG2735 Dual SPDT Analog Switch

DG2736 Description

DG2735, DG2736 Vishay Siliconix Low Voltage, 0.6 , Dual SPDT Analog Switch .
The DG2735, DG2736 are low voltage, low on-resistance, dual single-pole/double-throw (SPDT) monolithic CMOS analog switches designed for high performa.

DG2736 Features

* Low voltage operation (1.65 V to 4.3 V)
* Low on-resistance - RON: 0.6  at 2.7 V
* Fast switching: tON = 55 ns at 2.7 V
* TOFF = 40 ns at 2.7 V
* Latch-up current > 300 mA (JESD78)
* Material categorization: For definitions of compliance please see

DG2736 Applications

* The DG2735, DG2736 have an operation range from 1.65 V to 4.3 V single supply. The DG2735 has two separate control pins with for the separated two SPDT switched. The DG2736 has an EN pin. All switches are at high impedance mode when the EN is high. The DG2735, DG2736 are guaranteed 1.65 V logic com

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DG2736, DG2735. Please refer to the document for exact specifications by model.

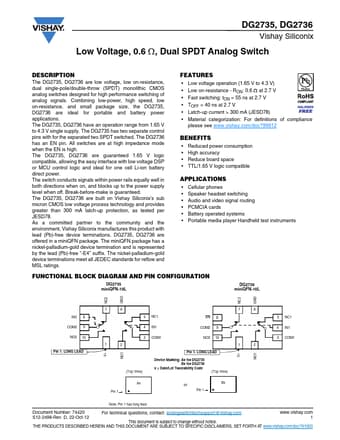

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DG2736, DG2735
Manufacturer
Vishay ↗ Siliconix
File Size
163.60 KB
Datasheet
DG2735_VishaySiliconix.pdf
Description
Dual SPDT Analog Switch
Note
This datasheet PDF includes multiple part numbers: DG2736, DG2735.
Please refer to the document for exact specifications by model.
