DG2735, Dual SPDT Analog Switch

DG2735, DG2736 Vishay Siliconix Low Voltage, 0.6 , Dual SPDT Analog Switch .
The DG2735, DG2736 are low voltage, low on-resistance, dual single-pole/double-throw (SPDT) monolithic CMOS analog switches designed for high performa.

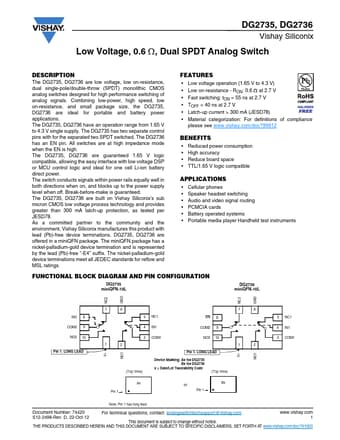

datasheet Preview Page 1 from Datasheet4u.com

DG2735_VishaySiliconix.pdf

DG2735 Datasheet Preview — Preview of DG2735 PDF

Datasheet Details

Part number:

DG2735

Manufacturer:

Vishay ↗ Siliconix

File Size:

163.60 KB

Description:

Dual SPDT Analog Switch

Features

* Low voltage operation (1.65 V to 4.3 V)
* Low on-resistance - RON: 0.6  at 2.7 V
* Fast switching: tON = 55 ns at 2.7 V
* TOFF = 40 ns at 2.7 V
* Latch-up current > 300 mA (JESD78)
* Material categorization: For definitions of compliance please see

Applications

* The DG2735, DG2736 have an operation range from 1.65 V to 4.3 V single supply. The DG2735 has two separate control pins with for the separated two SPDT switched. The DG2736 has an EN pin. All switches are at high impedance mode when the EN is high. The DG2735, DG2736 are guaranteed 1.65 V logic com
