DG2731 Dual SPDT Analog Switch

DG2731 Description

DG2731/2732/2733 Vishay Siliconix Low Voltage, 0.4 Ω, Dual SPDT Analog Switch .
The DG2731/2732/2733 are low voltage, low on-resistance, dual single-pole/double-throw (SPDT) monolithic CMOS analog switches designed for high perfor.

DG2731 Features

* Low Voltage Operation (1.65 V to 4.3 V) Low On-Resistance - rON: 0.3 Ω@ 3.6 V Fast Switching: TON = 50 ns @ 4.3 V TOFF = 14 ns @ 4.3 V
* Latch-Up Current > 300 mA (JESD78) RoHS COMPLIANT BENEFITS
* Reduced Power Consumption
* High Acc

DG2731 Applications

* The DG2731/2732/2733 have an operation range from 1.6 V to 4.3 V single supply. The DG2731 and DG2732 www. DataSheet4U. com have two separate control pins with reverse control logic. The DG2733 has an EN pin to enable the device when the logic is high. The DG2731/2732/2733 are 1.6-V logic compatible,

📥 Download Datasheet

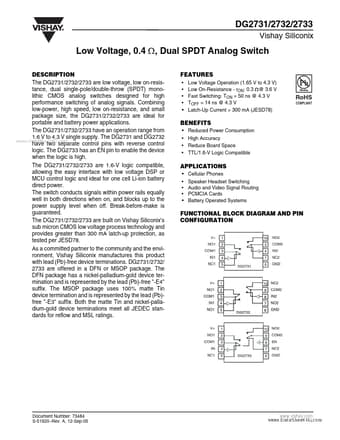

Preview of DG2731 PDF
datasheet Preview Page 2 datasheet Preview Page 3
