DG2733, DG2731 Dual SPDT Analog Switch

DG2733 Description

DG2731/2732/2733 Vishay Siliconix Low Voltage, 0.4 Ω, Dual SPDT Analog Switch .
The DG2731/2732/2733 are low voltage, low on-resistance, dual single-pole/double-throw (SPDT) monolithic CMOS analog switches designed for high perfor.

DG2733 Features

* Low Voltage Operation (1.65 V to 4.3 V) Low On-Resistance - rON: 0.3 Ω@ 3.6 V Fast Switching: TON = 50 ns @ 4.3 V TOFF = 14 ns @ 4.3 V
* Latch-Up Current > 300 mA (JESD78) RoHS COMPLIANT BENEFITS
* Reduced Power Consumption
* High Acc

DG2733 Applications

* The DG2731/2732/2733 have an operation range from 1.6 V to 4.3 V single supply. The DG2731 and DG2732 www. DataSheet4U. com have two separate control pins with reverse control logic. The DG2733 has an EN pin to enable the device when the logic is high. The DG2731/2732/2733 are 1.6-V logic compatible,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DG2733, DG2731. Please refer to the document for exact specifications by model.

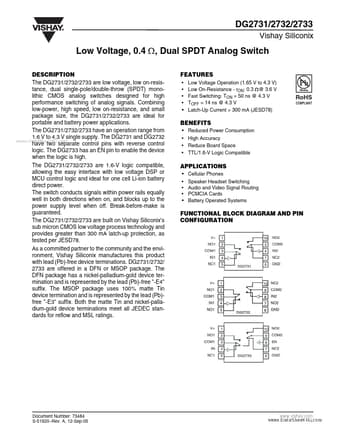

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DG2733, DG2731
Manufacturer
Vishay ↗ Siliconix
File Size
179.27 KB
Datasheet
DG2731_VishaySiliconix.pdf
Description
Dual SPDT Analog Switch
Note
This datasheet PDF includes multiple part numbers: DG2733, DG2731.
Please refer to the document for exact specifications by model.
