DG2732, DG2731, Dual SPDT Analog Switch

DG2731/2732/2733 Vishay Siliconix Low Voltage, 0.4 Ω, Dual SPDT Analog Switch .
The DG2731/2732/2733 are low voltage, low on-resistance, dual single-pole/double-throw (SPDT) monolithic CMOS analog switches designed for high perfor.

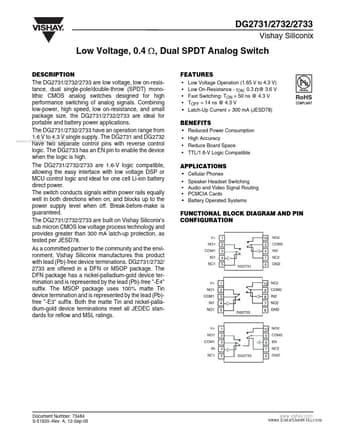

datasheet Preview Page 1 from Datasheet4u.com

DG2731_VishaySiliconix.pdf

DG2732 Datasheet Preview — This datasheet PDF includes multiple part numbers: DG2732, DG2731. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DG2732, DG2731

Manufacturer:

Vishay ↗ Siliconix

File Size:

179.27 KB

Description:

Dual SPDT Analog Switch

Note:

This datasheet PDF includes multiple part numbers: DG2732, DG2731.
Please refer to the document for exact specifications by model.

Features

* Low Voltage Operation (1.65 V to 4.3 V) Low On-Resistance - rON: 0.3 Ω@ 3.6 V Fast Switching: TON = 50 ns @ 4.3 V TOFF = 14 ns @ 4.3 V
* Latch-Up Current > 300 mA (JESD78) RoHS COMPLIANT BENEFITS
* Reduced Power Consumption
* High Acc

Applications

* The DG2731/2732/2733 have an operation range from 1.6 V to 4.3 V single supply. The DG2731 and DG2732 www. DataSheet4U. com have two separate control pins with reverse control logic. The DG2733 has an EN pin to enable the device when the logic is high. The DG2731/2732/2733 are 1.6-V logic compatible,
