IHLP-1616BZ-11 Datasheet - Vishay

IHLP-1616BZ-11 Commercial Inductors

www.vishay.com IHLP-1616BZ-11 Vishay Dale IHLP® Commercial Inductors, Low DCR Series DESIGN SUPPORT TOOLS click logo to get started Models Available Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING SATURATION AT 100 kHz, TYP. MAX. CURRENT CURRENT SRF 0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP. (μH) (m) (m) (A) (1) (A) (2) (MHz) 0.10 4.1 4.5 12.0 12.0 299 0.22 6.5 7.0 9.0 9.0 158 0.47 14.5 16 7.0 7.0 97 1.0 24 27 4.

IHLP-1616BZ-11 Datasheet (224.66 KB)

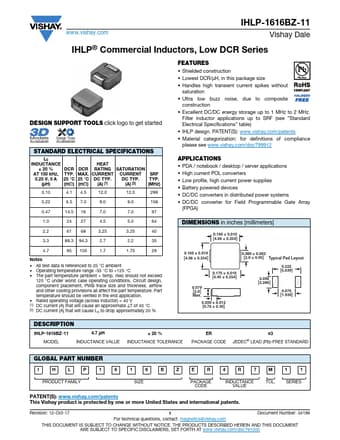

Preview of IHLP-1616BZ-11 PDF
IHLP-1616BZ-11 Datasheet Preview Page 2 IHLP-1616BZ-11 Datasheet Preview Page 3

Datasheet Details

Part number:

IHLP-1616BZ-11

Manufacturer:

Vishay ↗

File Size:

224.66 KB

Description:

Commercial inductors.
