IHLP-3232DZ-51 Commercial Inductors

Vishay

Description

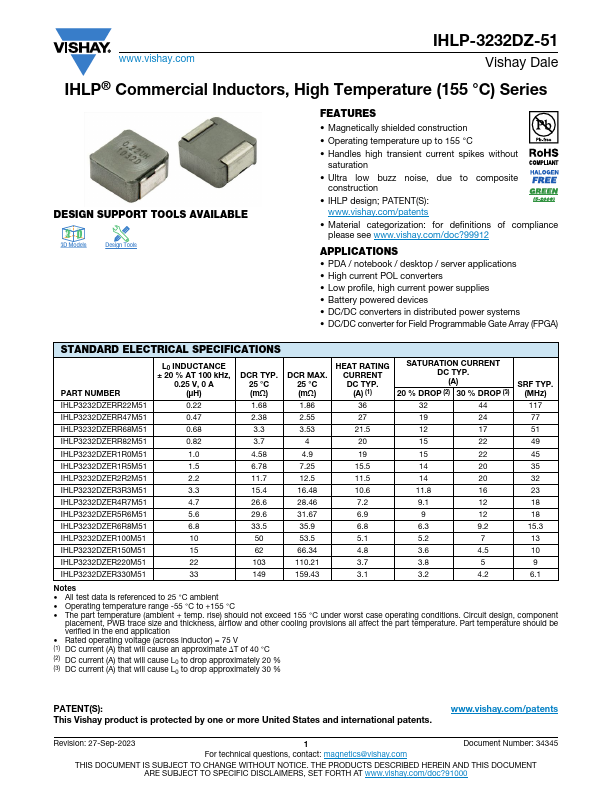

www.vishay.com IHLP-3232DZ-51 Vishay Dale IHLP® Commercial Inductors, High Temperature (155 °C) Series DESIGN SUPPORT TOOLS AVAILABLE 3D 3D 3D Mod.
IHLP-3232DZ-51 10 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE GLOBAL PART NUMBER I H L P 3 2 3 2 D Z ER e3 PACKAGE CODE J.

📥 Download Datasheet

IHLP-3232DZ-51 Datasheet Preview — Preview of IHLP-3232DZ-51 PDF

Datasheet Specifications

Part number: IHLP-3232DZ-51
Manufacturer: Vishay ↗
File Size: 425.04 KB
Datasheet: IHLP-3232DZ-51-Vishay.pdf
Description: Commercial Inductors

Features

* Magnetically shielded construction
* Operating temperature up to 155 °C
* Handles high transient current spikes without saturation
* Ultra low buzz noise, due to composite construction
* IHLP design; PATENT(S): www. vishay. com/patents
* Material categ

Applications

* PDA / notebook / desktop / server applications
* High current POL converters
* Low profile, high current power supplies
* Battery powered devices
* DC/DC converters in distributed power systems
* DC/DC converter for Field Programmable Gate Array (FPG
