IHLP5050FD-AP Datasheet - Vishay

IHLP5050FD-AP, Automotive Inductors

www.vishay.com IHLP5050FD-AP Vishay Dale IHLP® Automotive Inductors, Low AC Loss, High Temperature (155 °C) Series 13.5 mm LINKS TO ADDITIONAL RES.
IHLP-5050FD-AP 4.

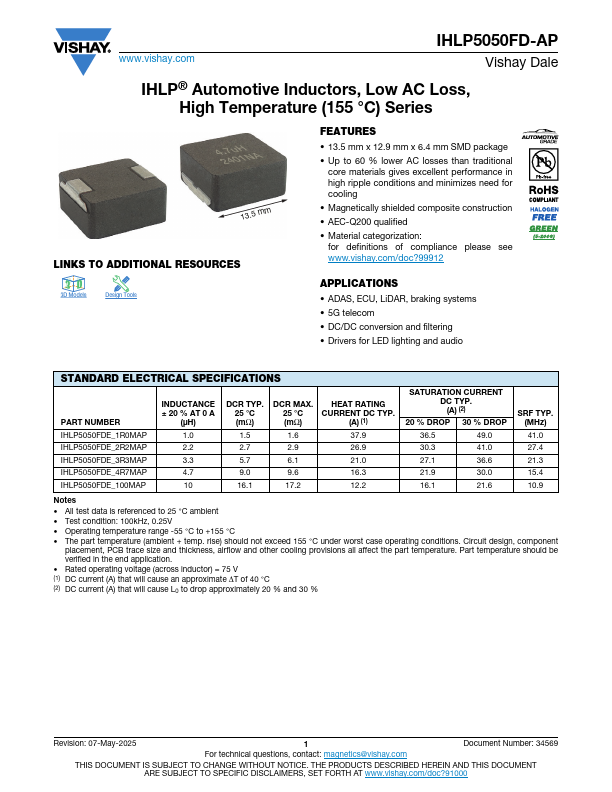

datasheet Preview Page 1 from Datasheet4u.com

IHLP5050FD-AP-Vishay.pdf

IHLP5050FD-AP Datasheet Preview — Preview of IHLP5050FD-AP PDF

Datasheet Details

Part number:

IHLP5050FD-AP

Manufacturer:

Vishay ↗

File Size:

396.85 KB

Description:

Automotive Inductors

Features

* 13.5 mm x 12.9 mm x 6.4 mm SMD package
* Up to 60 % lower AC losses than traditional core materials gives excellent performance in high ripple conditions and minimizes need for cooling
* Magnetically shielded composite construction
* AEC-Q200 qualified
* Mat

Applications

* ADAS, ECU, LiDAR, braking systems
* 5G telecom
* DC/DC conversion and filtering
* Drivers for LED lighting and audio STANDARD ELECTRICAL SPECIFICATIONS PART NUMBER IHLP5050FDE_1R0MAP IHLP5050FDE_2R2MAP IHLP5050FDE_3R3MAP IHLP5050FDE_4R7MAP IHLP5050FDE_100MAP INDU
