IRFI614G - Power MOSFET

IRFI614G Description

www.vishay.com IRFI614G Vishay Siliconix Power MOSFET D TO-220 FULLPAK G S GD S N-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg max.(.
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

IRFI614G Features

* Isolated package
* High voltage isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
* Sink to lead creepage distance = 4.8 mm
* Dynamic dV/dt rating
* Low thermal resistance
* Material categorization: for definitions of compliance please see www. vishay. com/d

IRFI614G Applications

* The molding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The FULLPAK is mounted to a heatsink using a single clip or by a single sc

📥 Download Datasheet

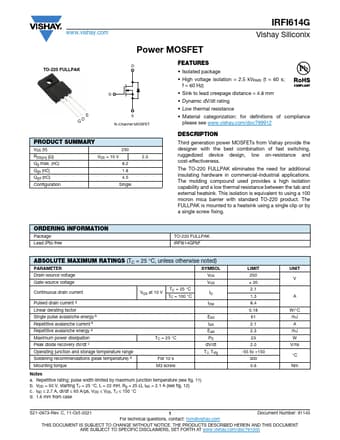

Preview of IRFI614G PDF
datasheet Preview Page 2 datasheet Preview Page 3
