IRFPS30N60K, Power MOSFET

IRFPS30N60K, SiHFPS30N60K Vishay Siliconix Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 600 VGS .

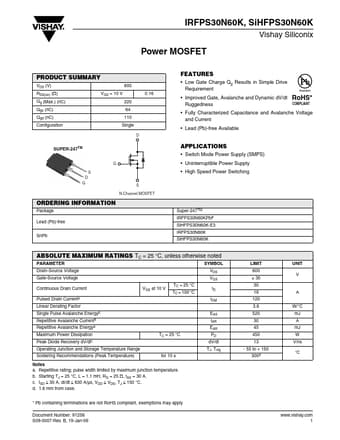

datasheet Preview Page 1 from Datasheet4u.com

IRFPS30N60K-Vishay.pdf

IRFPS30N60K Datasheet Preview — Preview of IRFPS30N60K PDF

Datasheet Details

Part number:

IRFPS30N60K

Manufacturer:

Vishay ↗

File Size:

132.91 KB

Description:

Power MOSFET

Features

* Low Gate Charge Qg Results in Simple Drive Requirement
* Improved Gate, Avalanche and Dynamic dV/dt Ruggedness Available RoHS
* COMPLIANT
* Fully Characterized Capacitance and Avalanche Voltage and Current

Applications

* Switch Mode Power Supply (SMPS)
* Uninterruptible Power Supply
* High Speed Power Switching Super-247TM IRFPS30N60KPbF SiHFPS30N60K-E3 IRFPS30N60K SiHFPS30N60K ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted PARAMETER SYMBOL Drain-Source Voltage Gate-Source
