IRL630

Power MOSFET

Vishay

IRL630 Features

* 200 V 0.40

* Dynamic dV/dt Rating

* Repetitive Avalanche Rated

* Logic Level Gate Drive

* RDS(on) Specified at VGS = 4 V and 5 V

* 150 °C Operating Temperature

* Fast Switching

* Ease of Paralleling

* Lead (Pb)-free Available Available

IRL630 General Description

G S G D S N-Channel MOSFET Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications at power.

IRL630 Datasheet (1.90 MB)

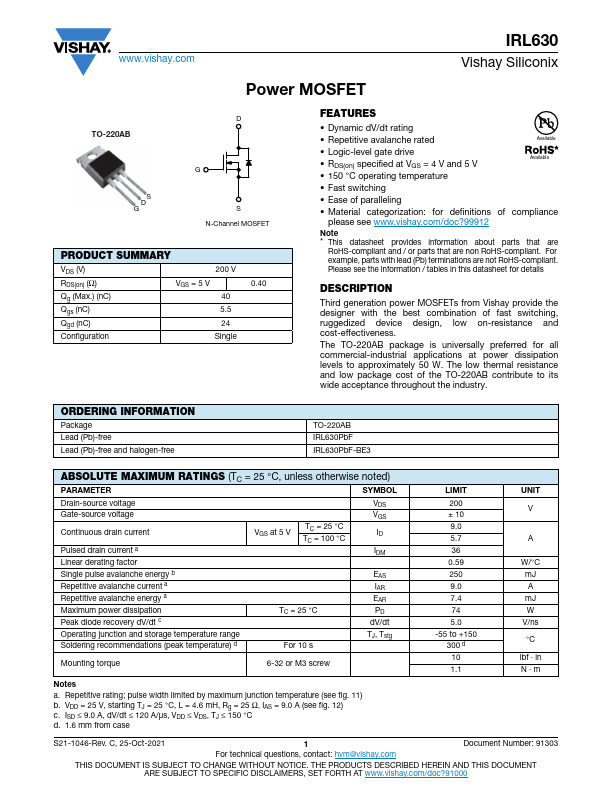

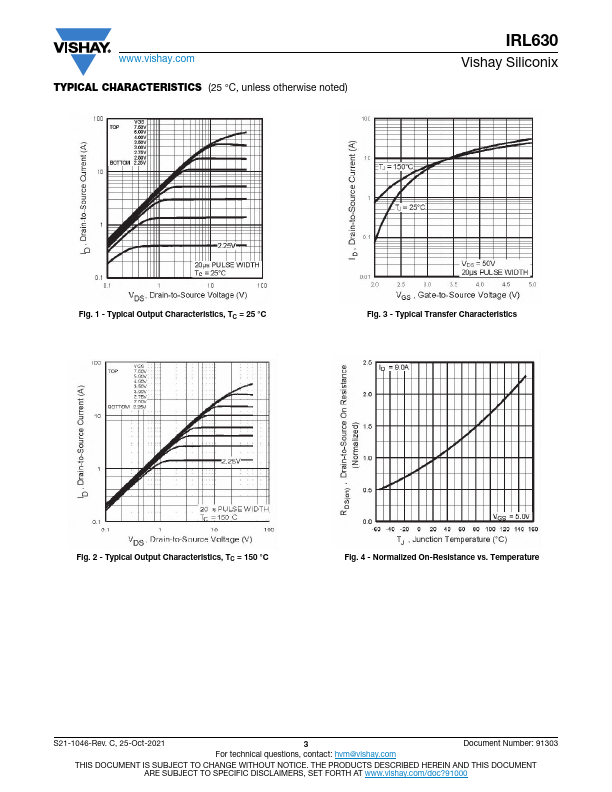

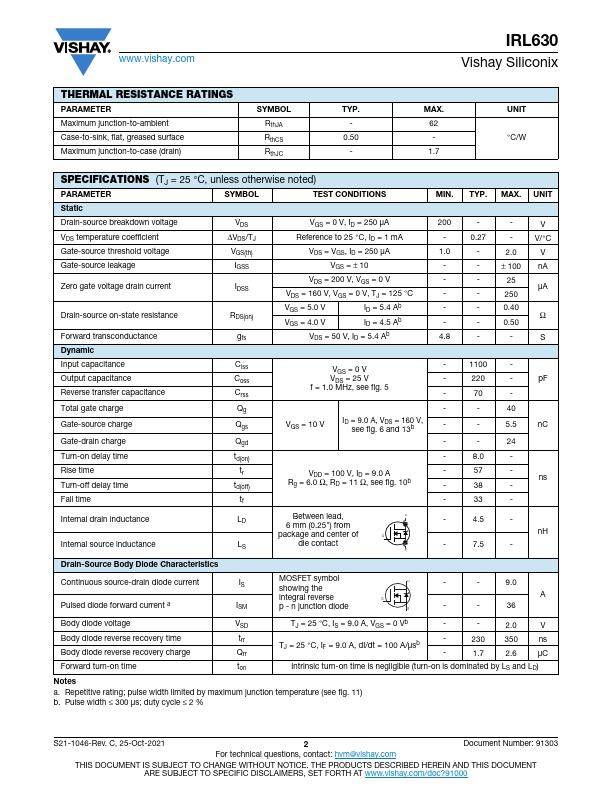

IRL630 Datasheet Preview — Preview of IRL630 PDF

Datasheet Details

Part number:

IRL630

Manufacturer:

Vishay ↗

File Size:

1.90 MB

Description:

Power mosfet.
IRL630, SiHL630 Vishay Siliconix Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration VGS = 5 V 40 5.5 24 .
