Si8802DB, N-Channel MOSFET

www.vishay.com Si8802DB Vishay Siliconix N-Channel 8 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 8 RDS(on) (Ω) 0.054 at VGS = 4.5 V 0.060 at VGS = 2.5.

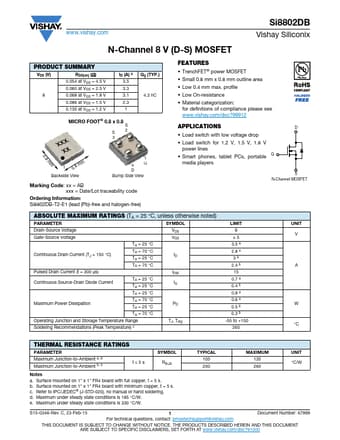

datasheet Preview Page 1 from Datasheet4u.com

Si8802DB-Vishay.pdf

Si8802DB Datasheet Preview — Preview of Si8802DB PDF

Datasheet Details

Part number:

Si8802DB

Manufacturer:

Vishay ↗

File Size:

133.35 KB

Description:

N-Channel MOSFET

Features

* TrenchFET® power MOSFET
* Small 0.8 mm x 0.8 mm outline area
* Low 0.4 mm max. profile
* Low On-resistance

Applications

* D
* Load switch with low voltage drop
* Load switch for 1.2 V, 1.5 V, 1.8 V power lines
* Smart phones, tablet PCs, portable G media players S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-So
