Si8800EDB, N-Channel 20 V (D-S) MOSFET

New Product www.DataSheet4U.com Si8800EDB Vishay Siliconix N-Channel 20 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.080 at VGS = 4.5 V 20 0.

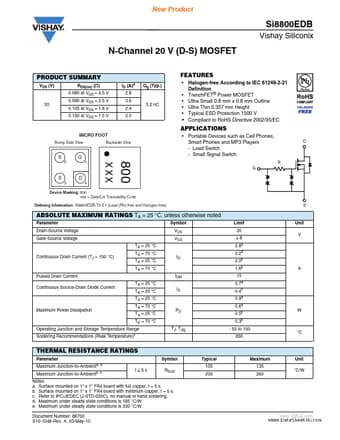

datasheet Preview Page 1 from Datasheet4u.com

Si8800EDB_VishaySiliconix.pdf

Si8800EDB Datasheet Preview — Preview of Si8800EDB PDF

Datasheet Details

Part number:

Si8800EDB

Manufacturer:

Vishay ↗ Siliconix

File Size:

164.35 KB

Description:

N-Channel 20 V (D-S) MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* Ultra Small 0.8 mm x 0.8 mm Outline
* Ultra Thin 0.357 mm Height
* Typical ESD Protection 1500 V

Applications

* MICRO FOOT Bump Side View Backside View S 2 G 1
* Portable Devices such as Cell Phones, Smart Phones and MP3 Players - Load Switch - Small Signal Switch R G D 800 XXX S 3 D 4 Device Marking: 800 xxx = Date/Lot Traceability Code Ordering Information: Si8800EDB-T2-E1 (Lead (Pb)-free a
