Si8812DB, N-Channel MOSFET

New Product Si8812DB Vishay Siliconix N-Channel 20 V (D-S) MOSFET .

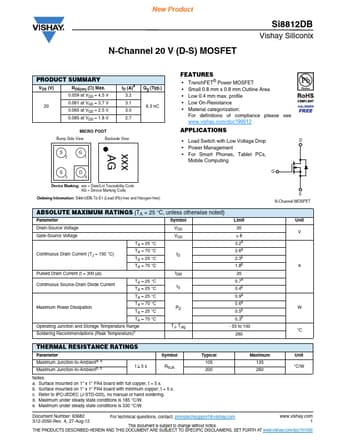

datasheet Preview Page 1 from Datasheet4u.com

Si8812DB-Vishay.pdf

Si8812DB Datasheet Preview — Preview of Si8812DB PDF

Datasheet Details

Part number:

Si8812DB

Manufacturer:

Vishay ↗

File Size:

225.38 KB

Description:

N-Channel MOSFET

Features

* PRODUCT SUMMARY VDS (V) RDS(on) () Max. 0.059 at VGS = 4.5 V 20 0.061 at VGS = 3.7 V 0.065 at VGS = 2.5 V 0.085 at VGS = 1.8 V MICRO FOOT Bump Side View Backside View ID (A)a 3.2 3.1 3.0 2.7 Qg (Typ. ) 6.3 nC
* TrenchFET® Power MOSFET Small 0.8 mm

Applications

* Load Switch with Low Voltage Drop
* Power Management
* For Smart Phones, Tablet PCs, Mobile Computing G D S 2 G 1 xxx AG S 3 D 4 Device Marking: xxx = Date/Lot Traceability Code AG = Device Marking Code S Ordering Information: Si8812DB-T2-E1 (Lead (Pb)-free and Halog
