* Trench MOS Schottky technology
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder bath temperature 275 °C maximum 10 s, per JESD 22-B106 (for
VB20100C-E3 Datasheet (208.38 KB)
VB20100C-E3
208.38 KB
Dual high voltage trench mos barrier schottky rectifier.

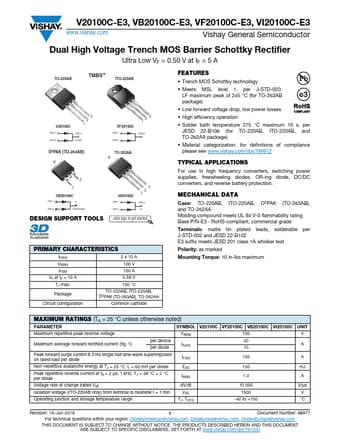

V20100C-E3, VB20100C-E3, VF20100C-E3, VI20100C-E3 www.vishay.com Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifi.
