VB2101K, P-Channel MOSFET

VB2101K P-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 100 0.50 at VGS = - 10 V 0.56 at VGS = - 6.0 V ID (A.

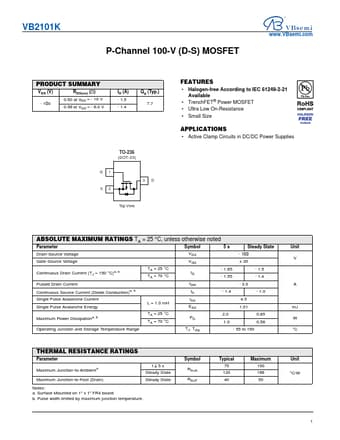

datasheet Preview Page 1 from Datasheet4u.com

VB2101K-VBsemi.pdf

VB2101K Datasheet Preview — Preview of VB2101K PDF

Datasheet Details

Part number:

VB2101K

Manufacturer:

VBsemi

File Size:

279.38 KB

Description:

P-Channel MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Available
* TrenchFET® Power MOSFET
* Ultra Low On-Resistance

Applications

* Active Clamp Circuits in DC/DC Power Supplies ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol 5s Steady State Unit Drain-Source Voltage Gate-Source Voltage VDS - 100 V VGS ± 20 Continuous Drain Current (TJ = 150 °C)a, b TA = 25 °C TA = 70 °C ID
