VB2290, P-Channel MOSFET

VB2290 P-Channel 20-V (D-S) MOSFET www.VBsemi.com MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () ID (A)a 0.060 at VGS = - 10 V - 4.0 - 20 0.065 .

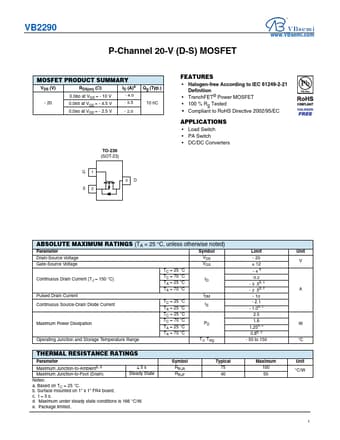

datasheet Preview Page 1 from Datasheet4u.com

VB2290-VBsemi.pdf

VB2290 Datasheet Preview — Preview of VB2290 PDF

Datasheet Details

Part number:

VB2290

Manufacturer:

VBsemi

File Size:

253.75 KB

Description:

P-Channel MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

Applications

* Load Switch
* PA Switch
* DC/DC Converters ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 150 °C) TC = 25 °C TC = 70 °C TA = 25 °C ID TA = 70 °C Puls
