VB20120SG-M3 High-Voltage Trench MOS Barrier Schottky Rectifier

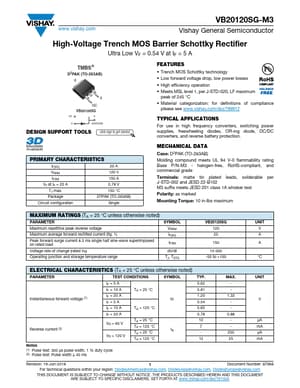

www.vishay.com VB20120SG-M3 Vishay General Semiconductor High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.54 V at IF = 5 A TMBS .

VB20120SG-M3-Vishay.pdf

VB20120SG-M3 Datasheet Preview — Preview of VB20120SG-M3 PDF

Datasheet Details

Part number:

VB20120SG-M3

Manufacturer:

Vishay ↗

File Size:

94.92 KB

Description:

High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912

Applications

* For use in high frequency converters, switching power supplies, freewheeling diodes, OR-ing diode, DC/DC converters, and reverse battery protection. Models Available PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 20 A TJ max. Package 20 A 120 V 150 A 0.78 V 150 °C D2PAK (TO-263AB) Circuit
