VB20150S-E3 High Voltage Trench MOS Barrier Schottky Rectifier

V20150S-E3, VF20150S-E3, VB20150S-E3, VI20150S-E3 www.vishay.com Vishay General Semiconductor High Voltage Trench MOS Barrier Schottky Rectifier Ul.

VB20150S-E3-Vishay.pdf

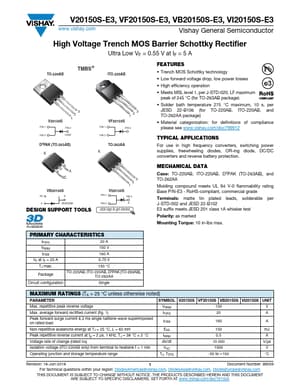

VB20150S-E3 Datasheet Preview — Preview of VB20150S-E3 PDF

Datasheet Details

Part number:

VB20150S-E3

Manufacturer:

Vishay ↗

File Size:

211.01 KB

Description:

High Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
* Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for

Applications

* For use in high frequency converters, switching power supplies, freewheeling diodes, OR-ing diode, DC/DC converters and reverse battery protection. A NC VB20150S NC K A HEATSINK DESIGN SUPPORT TOOLS 3 2 1 VI20150S PIN 1 PIN 2 PIN 3 K click logo to get started Models Available PRIMARY CHARA
