VS-CPV364M4KPbF

IGBT SIP

VS-CPV364M4KPbF Features

* Short circuit rated ultrafast: optimized for high speed, and short circuit rated to 10 μs at 125 °C, VGE = 15 V

* Fully isolated printed circuit board mount package

* Switching-loss rating includes all “tail” losses

* HEXFRED® soft ultrafast diodes

* UL appr

VS-CPV364M4KPbF General Description

The IGBT technology is the key to Vishay’s Semiconductors advanced line of IMS (Insulated Metal Substrate) power modules. These modules are more efficient than comparable bipolar transistor modules, while at the same time having the simpler gate-drive requirements of the familiar power MOSFET. This .

VS-CPV364M4KPbF Datasheet (247.03 KB)

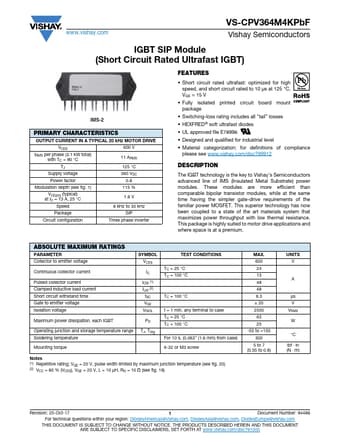

Preview of VS-CPV364M4KPbF PDF

Datasheet Details

Part number:

VS-CPV364M4KPbF

Manufacturer:

Vishay ↗

File Size:

247.03 KB

Description:

Igbt sip.
www.vishay.com VS-CPV364M4KPbF Vishay Semiconductors IGBT SIP Module (Short Circuit Rated Ultrafast IGBT) IMS-2 PRIMARY CHARACTERISTICS OUTPUT CU.
