VS-CPV364M4UPbF IGBT SIP

📥 Download Datasheet Datasheet Preview Page 1

Description

www.vishay.com VS-CPV364M4UPbF Vishay Semiconductors IGBT SIP Module (Ultrafast IGBT) IMS-2 PRIMARY CHARACTERISTICS OUTPUT CURRENT IN A TYPICAL 2.
The IGBT technology is the key to Vishay’s Semiconductors advanced line of IMS (Insulated Metal Substrate) power modules.

📥 Download Datasheet

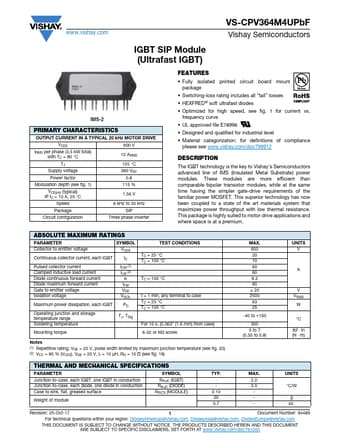

Preview of VS-CPV364M4UPbF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Fully isolated printed circuit board mount package
* Switching-loss rating includes all “tail” losses
* HEXFRED® soft ultrafast diodes
* Optimized for high speed, see fig. 1 for current vs. frequency curve
* UL approved file E78996
* Designed and qua

Applications

* and where space is at a premium. ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL Collector to emitter voltage VCES Continuous collector current, each IGBT Pulsed collector current Clamped inductive load current Diode continuous forward current Diode maximum forward current Gate to emitter voltage Is
