VA2236 - Low EMI Stereo Class D Audio Amplifier

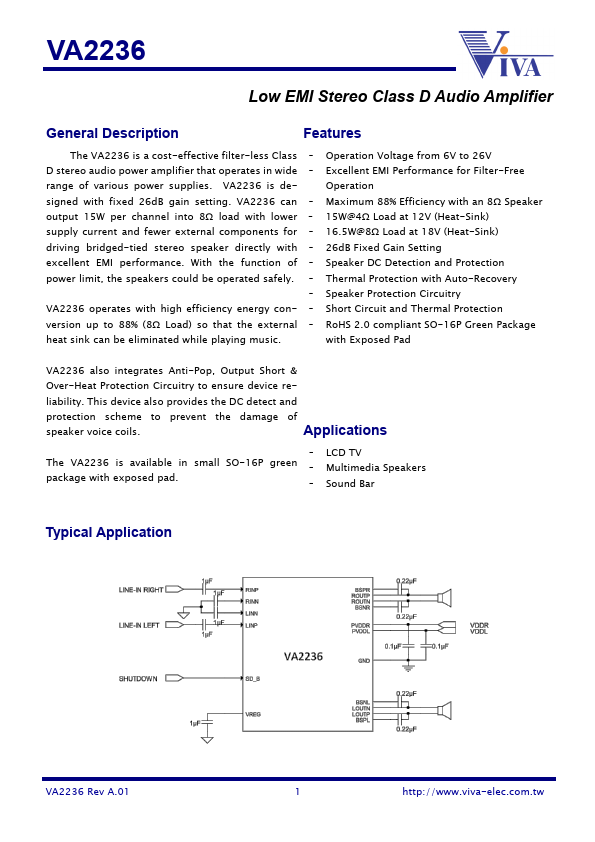

The VA2236 by Viva Electronics is a Low EMI Stereo Class D Audio Amplifier. Below is the official datasheet preview.

Datasheet Details

Part number	VA2236
Manufacturer	Viva Electronics
File Size	1.42 MB
Description	Low EMI Stereo Class D Audio Amplifier
Datasheet	VA2236-VivaElectronics.pdf

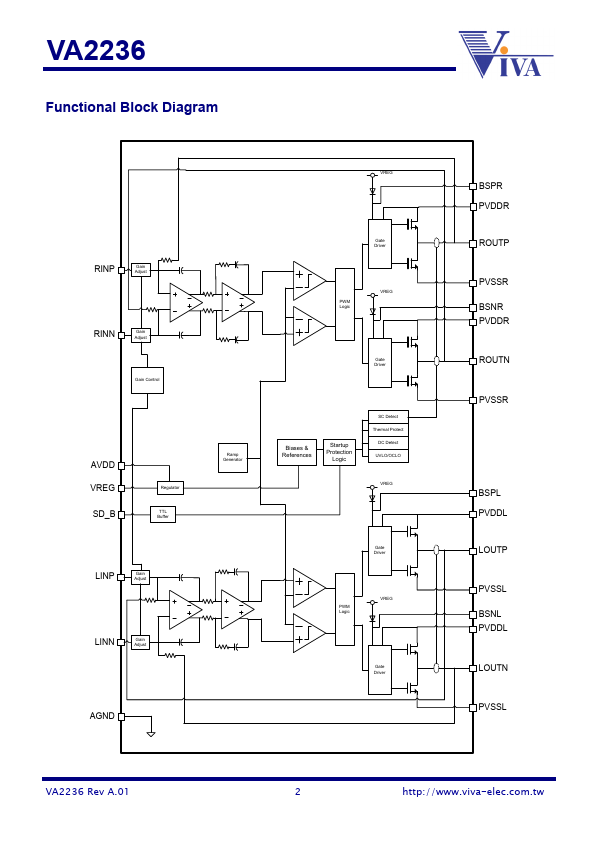

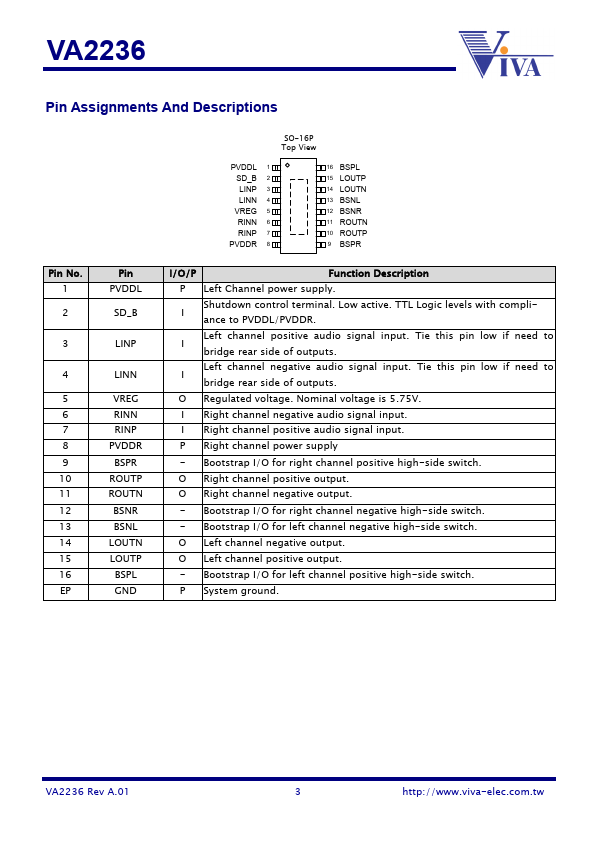

Additional preview pages of the VA2236 datasheet.

The VA2236 is a cost-effective filter-less Class - Operation Voltage from 6V to 26V D stereo audio power amplifier that operates in wide - Excellent EMI Performance for Filter-Free range of various power supplies. VA2236 is de- Operation signed with fixed 26dB gain setting. VA2236 can - Maximum 88% Efficiency with an 8Ω Speaker output 15W per channel into 8Ω load with lower - 15W@4Ω Load at 12V (Heat-Sink) supply current and fewer external components for - 16.5W@8Ω Load at 18V (Heat-Sink).
