VA2238A - Low EMI Stereo Class D Audio Amplifier

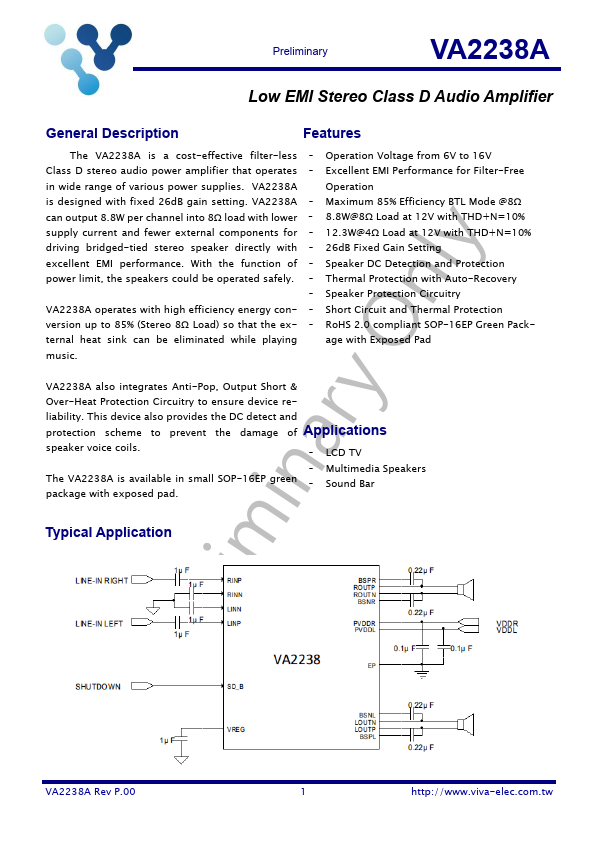

The VA2238A by Viva Electronics is a Low EMI Stereo Class D Audio Amplifier. Below is the official datasheet preview.

Datasheet Details

Part number	VA2238A
Manufacturer	Viva Electronics
File Size	850.73 KB
Description	Low EMI Stereo Class D Audio Amplifier
Datasheet	VA2238A-VivaElectronics.pdf

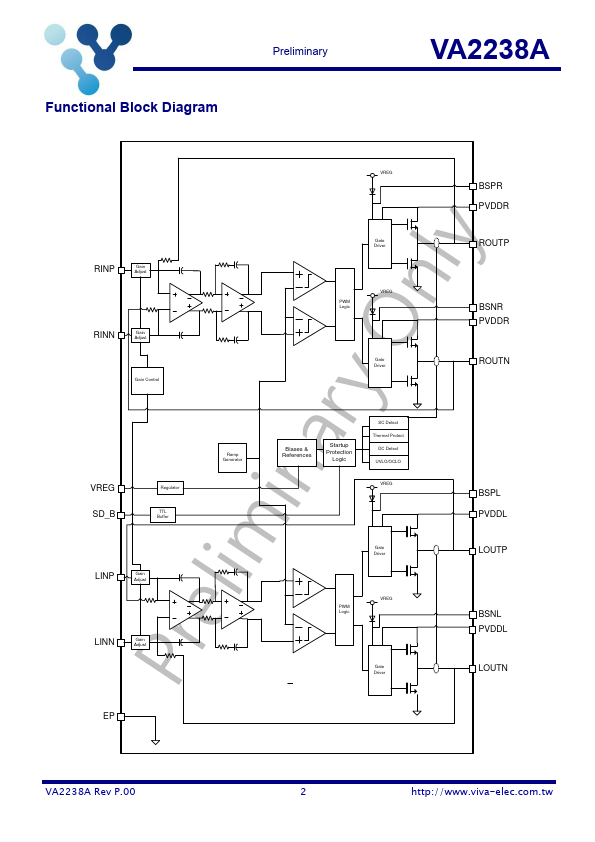

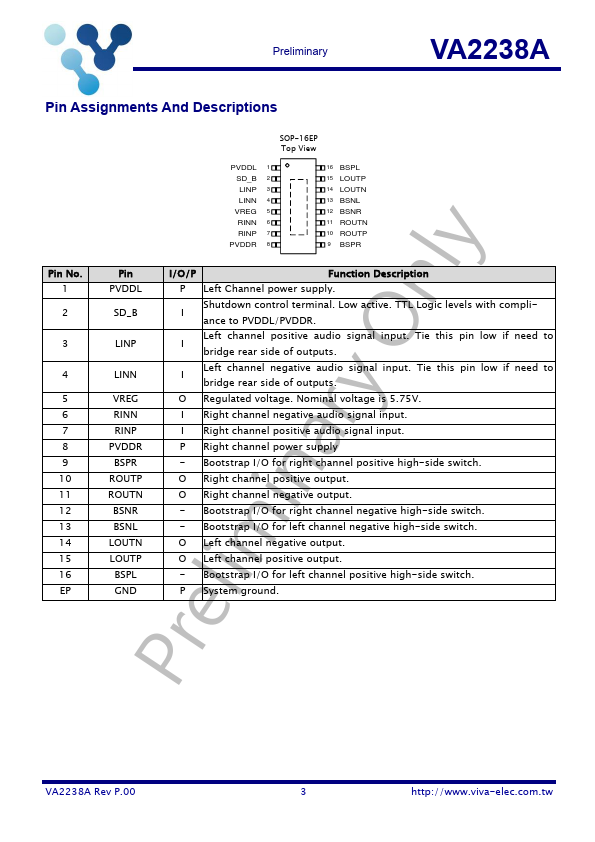

Additional preview pages of the VA2238A datasheet.

The VA2238A is a cost-effective filter-less - Operation Voltage from 6V to 16V Class D stereo audio power amplifier that operates - Excellent EMI Performance for Filter-Free in wide range of various power supplies. VA2238A Operation is designed with fixed 26dB gain setting. VA2238A - Maximum 85% Efficiency BTL Mode @8Ω can output 8.8W per channel into 8Ω load with lower - 8.8W@8Ω Load at 12V with THD+N=10% supply current and fewer external components for - 12.3W@4Ω Load at 12V with THD+N=.
