1SS226 DIODE

1SS226 Description

RoHS 1SS226 SWITCHING DIODE SOT-23 Plastic-Encapsulate DIODE D.

1SS226 Features

* TPower dissipation PD : 150 mW (Tamb=25oC) . ,LForward Current IF : 100 mA Reverse Voltage VR : 80V OOperating and storage junction temperature range Tj, Tstg : -55 oC to +150 oC 1 1. 2.4 1.3 SOT-23 3 2 ONIC CMarking:C3 2.9 1.9 0.95 0.95 0.4 Unit:mm TRELECTRICAL CHARACTERISTICS o C(Ta=25 C unle

📥 Download Datasheet

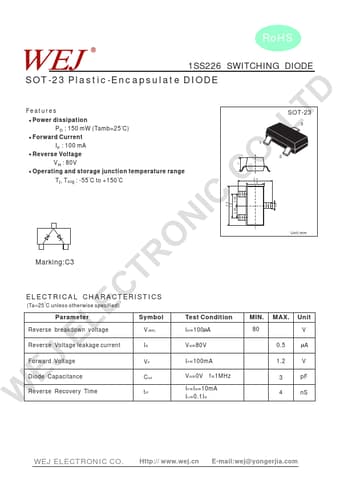

Preview of 1SS226 PDF
datasheet Preview Page 2

Datasheet Details

Part number
1SS226
Manufacturer
WEJ
File Size
98.56 KB
Datasheet
1SS226-WEJ.pdf
Description
DIODE
