WFF12N60 Datasheet, Mosfet, WINSEMI SEMICONDUCTOR

WFF12N60 Features

  • Mosfet
  • 12A, 600V,RDS(on)(Max 0.65Ω)@VGS=10V
  • Ultra-low Gate Charge(Typical 39nC)
  • Fast Switching Capability
  • 100%Avalanche Tested
  • Isolation Volta

PDF File Details

Part number:

WFF12N60

Manufacturer:

WINSEMI SEMICONDUCTOR

File Size:

477.78kb

Download:

📄 Datasheet

Description:

Silicon n-channel mosfet. This Power MOSFET is produced using Winsemi’s advanced planar stripe, VDMOS technology. This latest technology has been especially de

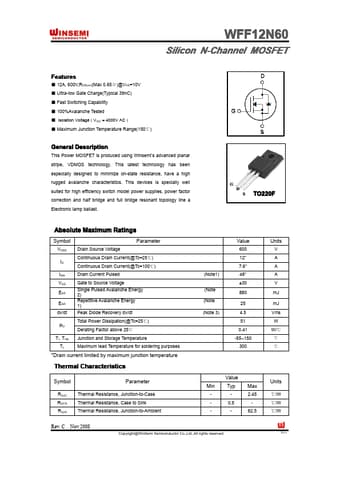

Datasheet Preview: WFF12N60 📥 Download PDF (477.78kb)
Page 2 of WFF12N60 Page 3 of WFF12N60
