WSTD6080AN - High-side driver

WINSEMI

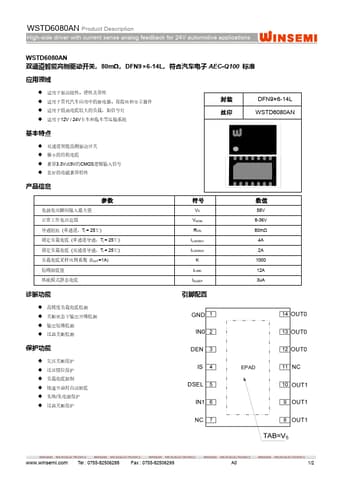

WSTD6080AN Datasheet Preview — Preview of WSTD6080AN PDF

Datasheet Details

Part number	WSTD6080AN
Manufacturer	WINSEMI
File Size	427.84 KB
Description	High-side driver
Datasheet	WSTD6080AN-WINSEMI.pdf

WSTD6080AN Product details

Description

High-side driver with current sense analog feedback for 24V automotive applications WSTD6080AN ，80mΩ，DFN9×6-14L， AEC-Q100 、、， 12V / 24V DFN9×6-14L WSTD6080AN 3.3V5VCMOS (，Tj = 25℃) (，Tj = 25℃) (，Tj = 25℃) (IOUT=1A) VS VNOM RON IL(NOM)1 IL(NOM)2 K ILIMH ISLEEP 58V 8-36V 80mΩ 4A 2A 1000 12A 3uA / WINSEMI MICROELECTRONICS WI
