WST03P10 Datasheet - Winsok

WST03P10 P-Ch MOSFET

The WST03P10 is the highest performance trench P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WST03P10 meet the RoHS and Green Product requirement,100% EAS guaranteed with full function reliabil.

WST03P10 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS RDSON ID -100V 300mΩ -3A Applications z High Frequency Point-of-Load Synchronous Buck Converter. z Networking DC-DC Po

WST03P10 Datasheet (2.70 MB)

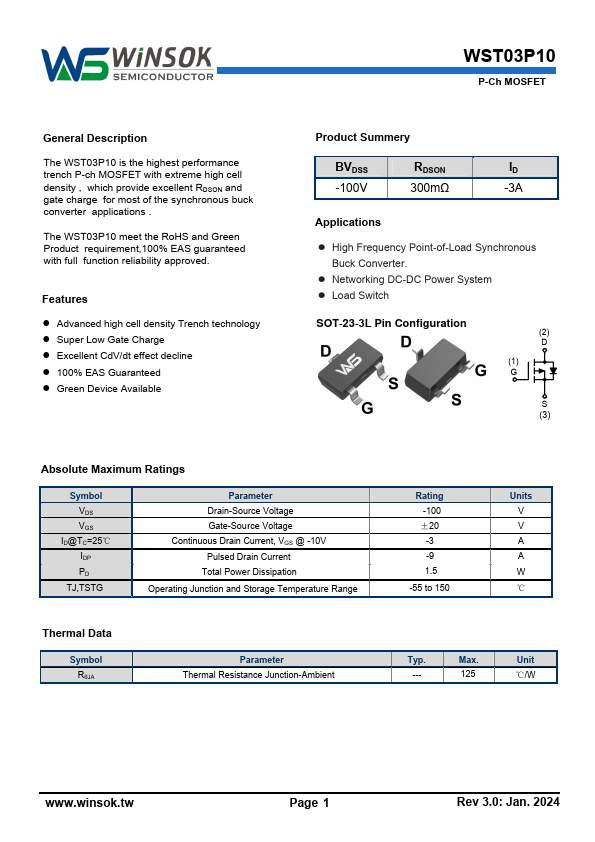

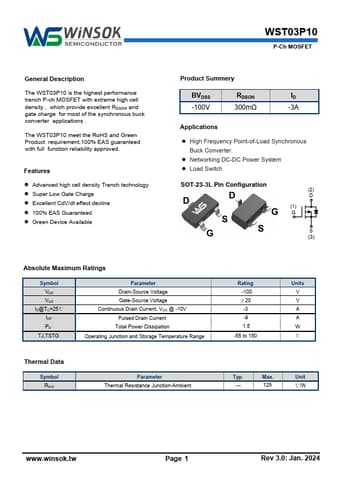

Preview of WST03P10 PDF

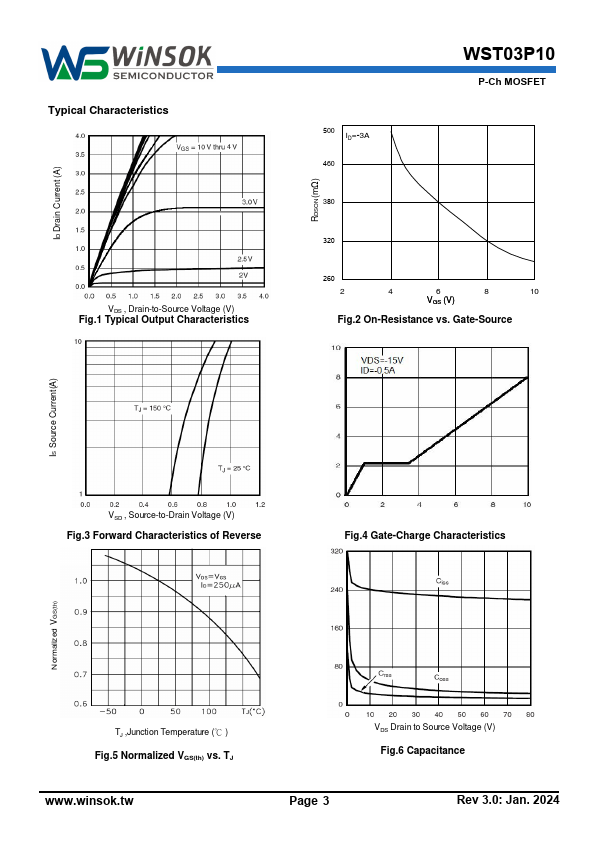

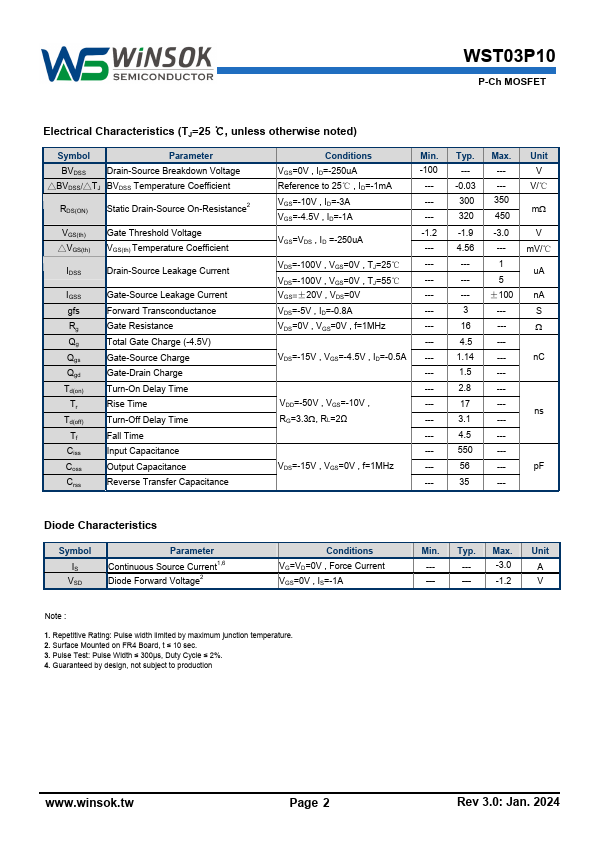

WST03P10 Datasheet Preview Page 2 WST03P10 Datasheet Preview Page 3

Datasheet Details

Part number:

WST03P10

Manufacturer:

Winsok

File Size:

2.70 MB

Description:

P-ch mosfet.
