BT234-800D 4Q Triac

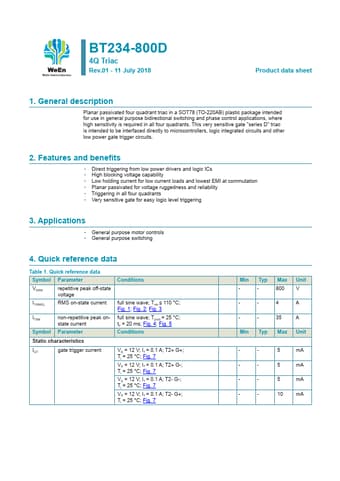

📥 Download Datasheet  Datasheet Preview Page 1

Description

BT234-800D 4Q Triac Rev.01 - 11 July 2018 Product data sheet 1.General .
Planar passivated four quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in general purpose bidirectional switching and phase cont.

📥 Download Datasheet

Preview of BT234-800D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BT234-800D
Manufacturer
WeEn
File Size
504.52 KB
Datasheet
BT234-800D-WeEn.pdf
Description
4Q Triac

Features

* Direct triggering from low power drivers and logic ICs
* High blocking voltage capability
* Low holding current for low current loads and lowest EMI at commutation
* Planar passivated for voltage ruggedness and reliability
* Triggering in all four quadrants
