WFF9N90

Silicon N-Channel MOSFET

WFF9N90 Features

* 9A,900V,RDS(on)(Max1.35Ω)@VGS=10V

* Ultra-low Gate charge(Typical 43nC)

* Fast Switching Capability

* 100%Avalanche Tested

* Maximum Junction Temperature Range(150℃) General Description This Power MOSFET is produced using Winsemi's advanced planar stripe,VDMOS technology.this

WFF9N90 Datasheet (281.86 KB)

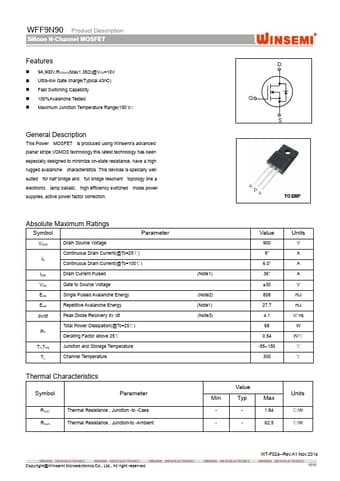

Preview of WFF9N90 PDF

Datasheet Details

Part number:

WFF9N90

Manufacturer:

Winsemi

File Size:

281.86 KB

Description:

Silicon n-channel mosfet.
